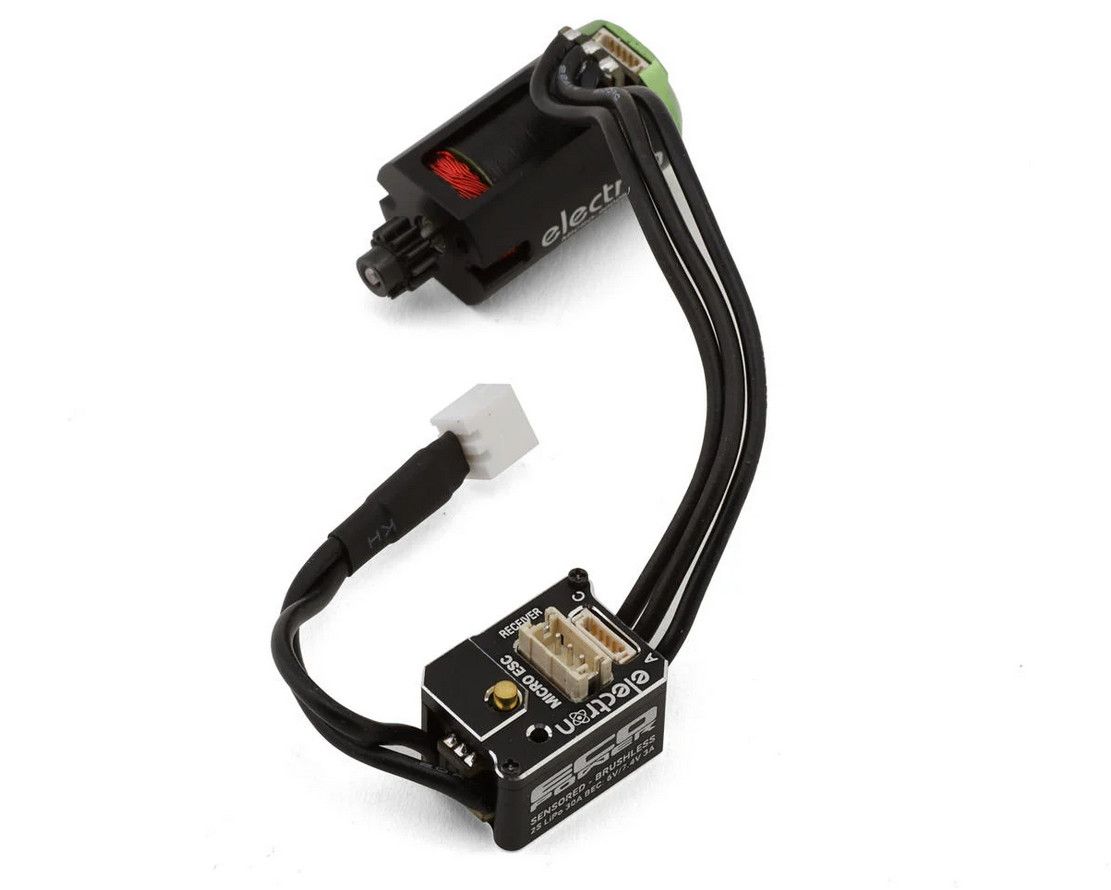

Plug-N-Play Brushless Micro-B/T Upgrade!
The EcoPower "Electron" Micro 24 Brushless Upgrade Combo is the ultimate performance boost, specifically designed to upgrade Losi Micro-B and Micro-T vehicles. Featuring a high-output brushless ESC and compact form factor, this combo delivers exceptional power, responsiveness, and control in tight spaces. Its lightweight construction and CNC aluminum housing ensure both durability and thermal efficiency. Whether you're racing on a tight indoor track or just want to upgrade your micro rig, this combo gives you pro-level capability in a mini package.
About the Brushless ESC & Motor Combo
Compact and Lightweight Power
Tiny Size, Big Output: The Electron ESC is engineered to deliver impressive performance in an ultra-compact design. Measuring just 21x13.8x11mm and weighing only 7.6g (including wires), it fits effortlessly into even the tightest RC builds. Despite its small footprint, it handles a continuous 30A output with no compromise in power delivery—perfect for micro racing platforms that demand high efficiency and performance.
Advanced Customization and Control
Tune It Your Way: With optional support for a separately sold program card, users can access a wide range of adjustable parameters including throttle curves, brake force, motor timing, and more. This allows for highly tailored performance suited to different tracks, driving styles, and battery types. Calibration is quick and easy, ensuring your setup is dialed in with minimal hassle, and a clear LED indicator system helps you stay informed on ESC status during operation.
Built-in Protection and Thermal Design
Smart, Durable, Reliable: Built with a full CNC aluminum housing, the ESC ensures excellent heat dissipation and durability under demanding conditions. It also features intelligent protection systems such as thermal shutdown, low voltage cutoff, signal loss detection, and sensor cable disconnection alerts. Each potential fault is indicated by a specific LED flash pattern, allowing for quick diagnostics and reduced risk of long-term damage to your components.
Features:
- Ultra-compact size for tight installations
- 30A continuous and peak output
- Lightweight for better power-to-weight ratio
- Full CNC aluminum case for better heat dissipation
- Sensorless brushless motor compatibility
- Easy calibration and setup via LED feedback
- Optional program card for tuning settings
- Built-in 6.0V/7.4V 3A BEC
- Supports 2S LiPo input (6.0–8.4V)
- LED-based protection feedback for troubleshooting
Includes:
- (1) EcoPower Electron 30A Brushless ESC
- (1) 100mm BEC Wire
- (1) Sensor Cable
- (1) Hex Wrench
- (1) Pre-soldered ESC Motor Leads
- (1) User Manual
Specifications:
| Suggested Application | 1/24, 1/27 & 1/28 Vehicles |
|---|---|
| Motor Type | Brushless |
| Input Voltage | 2S LiPo (6.0-8.4V) |
| Continuous Current | 30A |
| Burst Current | 80A |
| Dimensions (LxWxH) | 0.83x0.54x0.44in (21x13.8x11mm) |
| Weight | 0.27oz (7.6g) |
| BEC Voltage | 6V/7.4V |
| BEC Continuous Current | - |
| BEC Peak Current | 3A |
| Motor Connector | Solder Type |
| Battery Connector | PH2.0 |
| Motor Wire | - |
| Battery Wire | - |
| Throttle Wire | - |
| Programming | Button/Program Box |
Motor:
| Suggested Application | 1/24, 1/27 & 1/28 Vehicles |
|---|---|
| Size | 9000kV |
| Type | Brushless - Sensored |
| Voltage | 7.4V (2S) |
| Adjustable Timing | No |
| Watts | - |
| Connector | Solder Type |
| Dimensions (LxD) | 0.98x0.59in (25x15mm) |
| Shaft Length | 0.28in (7mm) |
| Shaft Diameter | 0.08in (2mm) |
| Weight | - |
