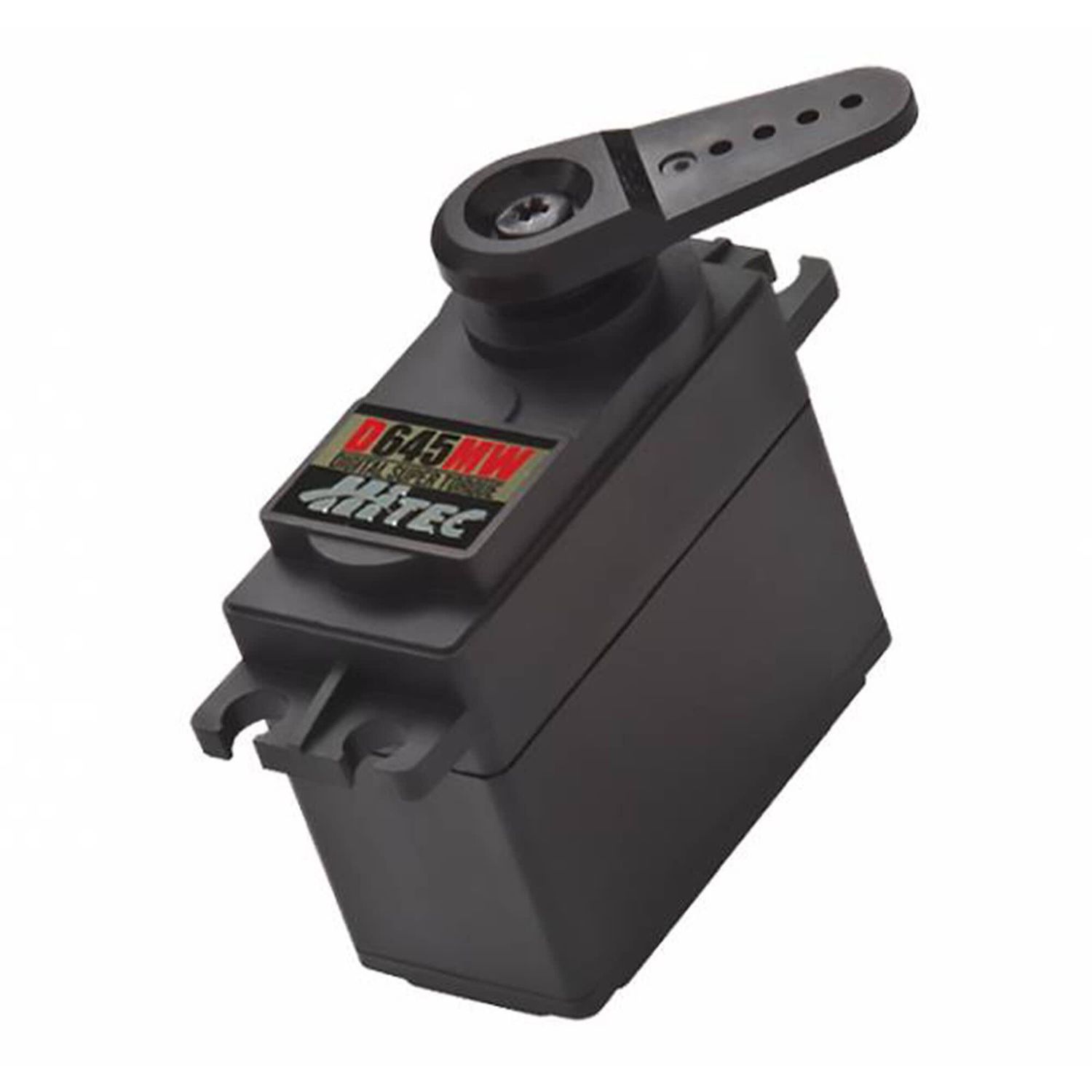

Combining industry leading high-resolution, state-of-the-art ultra-response technology with a 32-bit MCU and 12-bit ADC for unprecedented programmability and flexibility, these servos deliver significantly smoother movement. The speedy, powerful line operates on a wide 4.8 ~ 8.4 voltage range, allowing use with any common battery chemistry without the need for adapters or regulators. Featuring Hitec’s industry standard 25-tooth output spline with 3mm hex screw, each D-Series servo brings monster performance never known before in the market.

All Features

Application

12-15lb Sport, 3D performance & scale airplanes, 2M & up sailplanes, 600mm electric helis, 50-59 class gas helis, 1:10 scale on/off-road vehicles, 1M & scale sail boats, 1/10 scale power boats

Bearing

Dual Ball Bearing

Bushing Or Bearing

Bearing

Connector Type

Universal

Current Draw Idle

30mA

Current Draw Stall

2,650mA

Deadband

2µs

Gear Type

Metal

Input Voltage

4.8V ~ 6.0V ~ 7.4V

Maximum Servo Speed

0.28 sec/60 deg @ 4.8V, 0.20 sec/60 deg @ 6.0V, 0.17 sec/60 deg @ 7.4V

Maximum Servo Torque

115oz/in @ 4.8V, 158oz/in @ 6.0V, 180oz/in @ 7.4V

Product Height

1.48" (38 mm)

Product Length

1.59" (40 mm)

Product Weight

2.11 oz (57.0g)

Product Width

0.77" (20 mm)

Programmable

Yes

Servo Operating Voltage

4.8 - 7.4V (HV)

Servo Size Category

Standard

Servo Type

Digital

Spline Count

25 Teeth

Water-Resistant

No

Wire Gauge

22 AWG

Compatibility

• 1/10 Astute TD2 2WD Off-Road Buggy 2022, Painted Body (Limited Edition)
• 1/10 Skyline GT-R Fazer Mk2 FZ02 Brushed 4x4 On-Road Touring RTR
