Includes:

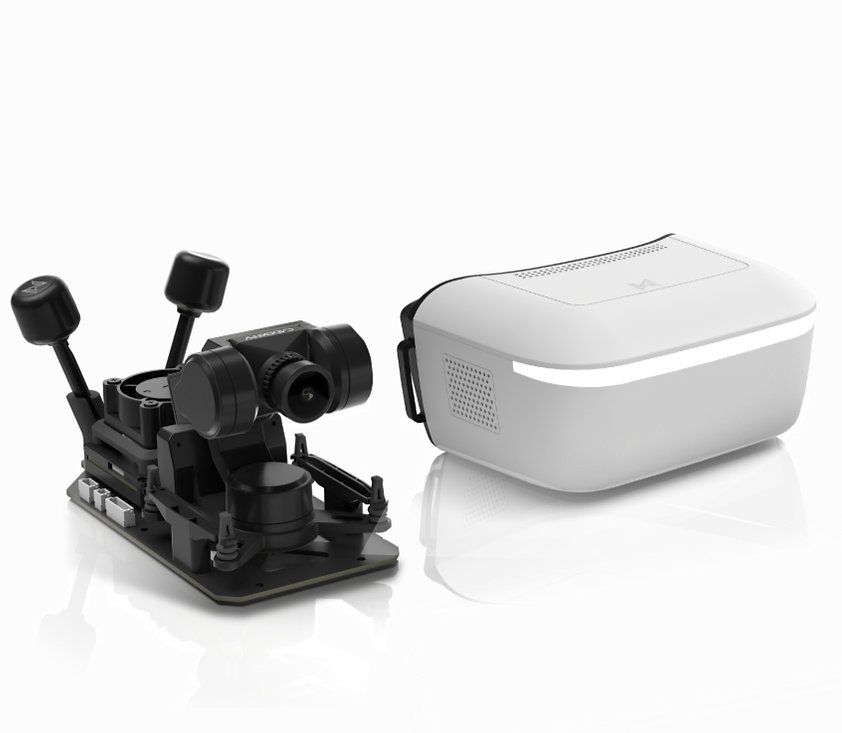

Headtracking HD goggles
XplorerHD camera kit
Plug n' Play cable (XT60)
Mounting Accessories
Power connector (for goggles)
User Manual
U.S. Based Customer Service Support
XplorerHD Camera Specs:
Unit Size: 100mm Length, 49mm Width, 63mm* Height. (Added height measurement to clear gimbal movement)
Weight: Approx 102g / 4oz (unit only)
Camera Size: 19mm
Image Sensor: 1/1.8in Sony Starvis2 Sensor
Resolution: 1080p/60fps; 720p/100fps; 720p/60fps
FOV: 160°
Aperture: F1
Minimum Illumination: 0.0001Lux
Max Speed: +/- 1500°/s
Max Movement Range
Yaw: +/- 160°
Pitch: +/- 120°
Roll: +/- 60°
Size: 1.84x1.82x2.1"
Weight: 46g*
Input Voltage: 7-26v (recommend atleast 10v)
Goggle Specs:
Screen Resolution: 1920x1080/60Hz
Resolution Options: 1080p 60fps, 720p 60fps
Size: 4.5" LCD
FOV: 75
SD Card: up to 256g
Power Input: 6-25.2v
Antenna: 4.9dBi gain / LHCP Patch
This is kit is optimized for R/C crawlers and Trainer/High Wing planes. High performance R/C applications NOT recommended. Do not intentionally crash or operate in areas where severe bumps may occur.
Please be aware of your surroundings as operating behind buildings, rocks, hills, or near radio towers may result in video cut out.
XplorerHD camera module MAX input voltage is 26v (or 6s LiPo). Not recommended on use on 7v (2s LiPo) vehicles as the battery sag may shut the unit off.
Please visually check for any damages and if everything is working as intended before each use. DO NOT use if the fan is not operating as this may overheat the unit and activate shut down mode.
Please check your local lawas for legal FPV use. HAM Amateur license is required for more than 25mW! (U.S)
This unit is NOT water proof
Do NOT use the XplorerHD with damaged or missing antennas as this may severely damage the unit!
