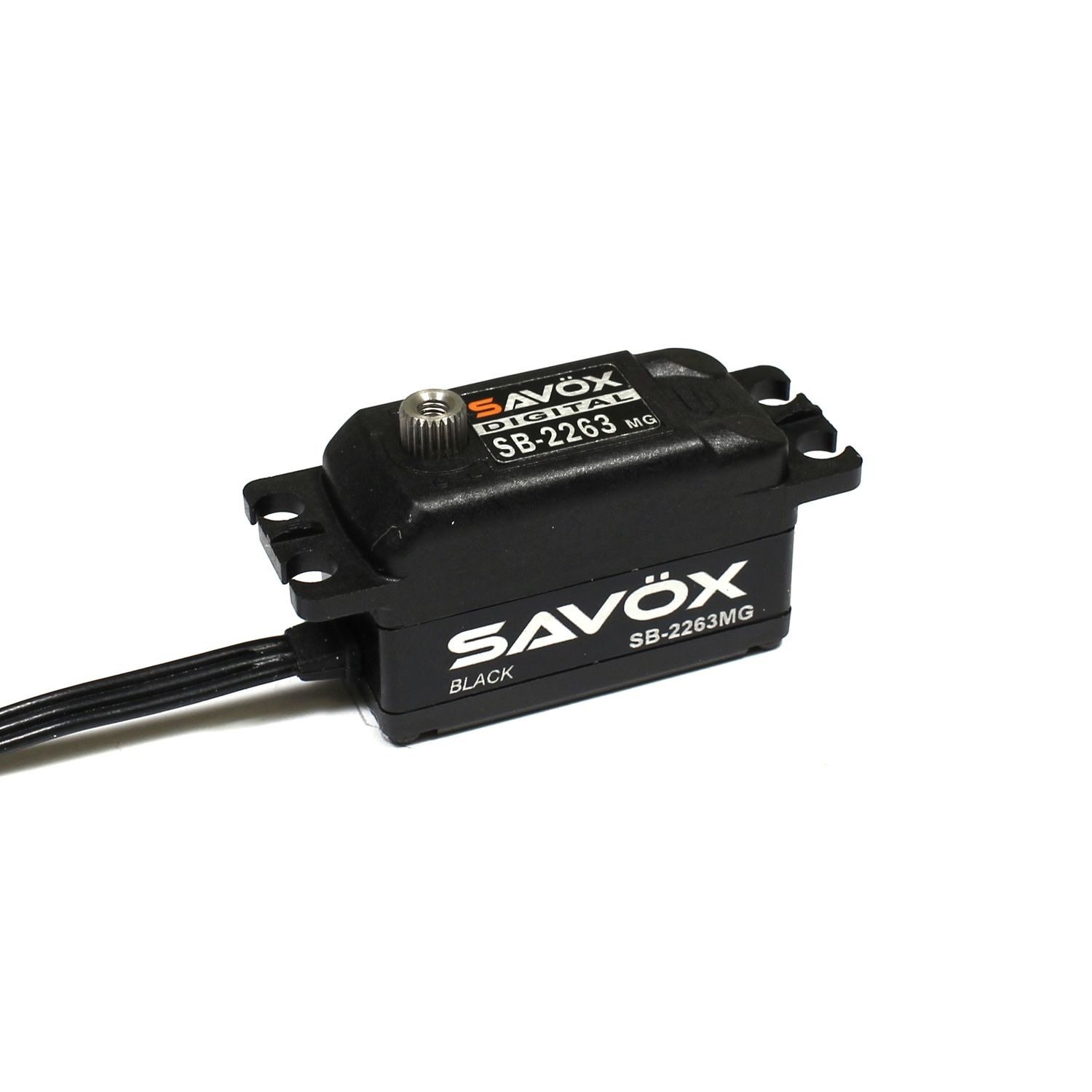

SAVSB2263MG-BE Savox Black Edition Low Profile Brushless Digital Servo, 0.076sec / 138.9oz @ 6.0V
Product Details
UPC: 4710006993263
Brand: Savox
Features:
- Metal gear train ensures durability under harsh situations.
- Sleek black design with laser etching and a shorter 200mm black lead wire
Specifications:
- Torque @ 4.8v - 8.0kg/111.1oz-in
- Torque @ 6v - 10.0kg138.9oz-in
- Speed @ 4.8v - 0.10 sec/60 deg
- Speed @ 6v - 0.076 sec/60 deg
- Dimensions L x W x H (mm): 40.8 x 20.2 x 25.4
- Weight: 48.0g
Technical Details:
- Operating Temperature: 14° - 122°F (-10° - 50°C)
- Running Current (no load): 180mA @4.8V, 220mA @6.0V
- Stall Current (at locked): 2900mA @4.8 V, 3700mA @6.0V
- Idle Current: 5mA @4.8V, 5mA @6.0V
- Wire Length: 50 ± 5mm
- Output Gear Spline: 25 Tooth
- Bearings: 2BB
- Operating Travel: 90° (1000 → 2000 µ second)
- Neutral Position: 1500 µ second
- Pulse Width Range: 800 → 2200 µ second
- Maximum Travel: Appx 130° (900 → 2100 µ second)
- Refresh Rate: 333 Hz
- Motor Type: Brushless
