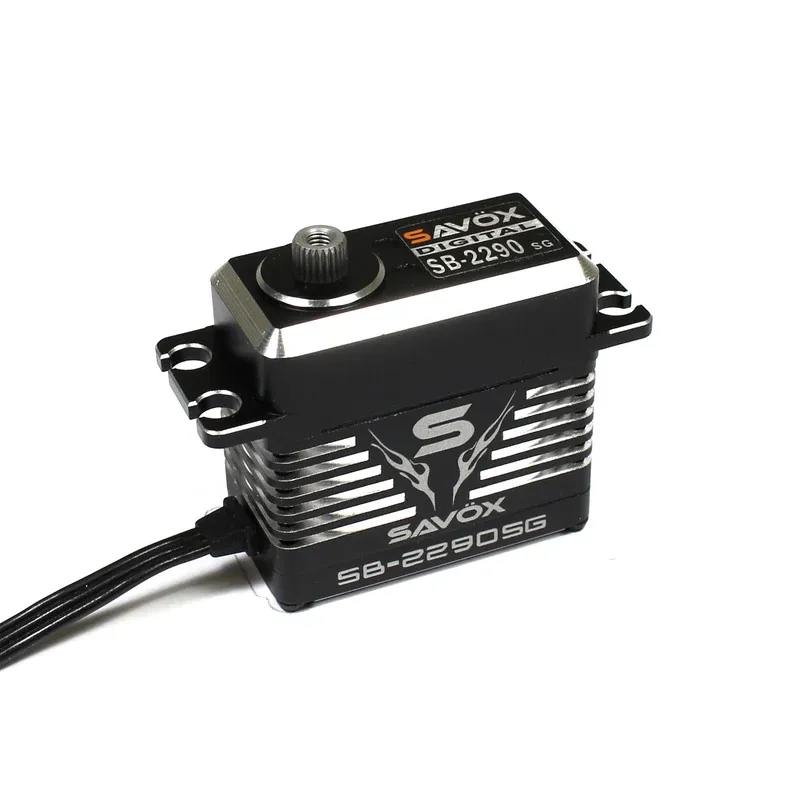

SAVSB2290SG Savox Monster Torque, Black Edition Brushless Servo
+2

SAVSB2290SG Savox Monster Torque, Black Edition Brushless Servo

$169.99
The powerful "Monster" performance series from Savox utilize an all aluminum case, unique brushless motor and controller technology to boost power up to 35% over previous generation servos.
In stock: 2 available
Save this product for later
Customer reviews
Reviews only from verified customers
No reviews yet. You can buy this product and be the first to leave a review.
Share this product with your friends
Pin it
SAVSB2290SG Savox Monster Torque, Black Edition Brushless Servo
Product Details
UPC: 4710006993393
Brand: Savox

Features:

  • Full Aluminum Case
  • 3 Precision Ball Bearings.
  • Unique steel gears

    • Specifications:

  • Torque @ 6v - 45.0kg-cm/624.9oz-in
  • Torque @ 7.4v - 55.0kg-cm/763.8oz-in
  • Torque @ 8.4v - 70.0kg-cm/972.1oz-in
  • Speed @ 6v - 0.16 sec/60 deg
  • Speed @ 7.4v - 0.13 sec/60 deg
  • Speed @ 8.4v - 0.11 sec/60 deg
  • Dimensions L x W x H (mm): 40.3 x 20.2 x 38.7
  • Weight: 81g

    • Technical Details:


  • Operating Temperature: 14° - 122°F (-10° - 50°C)
  • Running Current (no load): 180mA @6.0V, 220mA @7.4V, 220mA @8.4V
  • Stall Current (at locked): 7500mA @6.0V, 9200mA @7.4V, 10500mA @8.4V
  • Idle Current: 5mA @6.0V, 5mA @7.4V, 5mA @8.4V
  • Wire Length: 300 +/- 5mm
  • Output Gear Spline: 25 Tooth
  • Bearings: 3BB
  • Operating Travel: 100° (1000 → 2000 µ second)
  • Neutral Position: 1500 µ second
  • Pulse Width Range: 800 → 2200 µ second
  • Maximum Travel: Appx 130° (900 → 2100 µ second)
  • Refresh Rate: 333 Hz
  • Motor Type: Brushless
