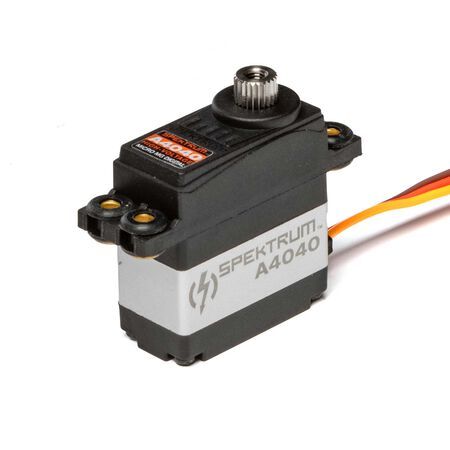

SPMSA4040 Spektrum A4040 MT/HS Micro Metal Gear HV Servo
Product Details
UPC: 605482153796
Brand: Spektrum
Features
- Bearing supported drive train helps maximize smooth operation
- Class leading performance (7.0kg-cm and .094 sec/60° @8.4v)
- Operating Frequency: 200hz to 333hz
- Micro size is perfectly suited for parkflyer and sport size model aircraft
- Low wear and tightly meshed all metal gear train
- Over Current and Temperature protection
- Aluminum servo case helps keep operating temperatures low
- High Voltage (HV) capable (4.8-8.4v input range)
Overview
Features
- High Voltage (HV) capable (4.8-8.4v input range)
- Micro size is perfectly suited for parkflyer and sport size model aircraft
- Class leading performance (7.0kg-cm and .094 sec/60° @8.4v)
- Aluminum servo case helps keep operating temperatures low
- Low wear and tightly meshed all metal gear train
- Bearing supported drive train helps maximize smooth operation
- Over Current and Temperature protection
- Operating Frequency: 200hz to 333hz
A4040 HV Mid Torque High Speed Digital Micro MG Servo
The Spektrum™ A4040 digital micro, metal gear servo offers extraordinary performance for park flyer size (15-25 size) and specialty aircraft applications. High voltage capable, the A4040 can produce 7.0kg-cm (96 oz-in) of torque at 0.094 sec/60° speeds with 8.4V input. Its low-wear, metal gear drive train is powered by a coreless motor and bearing supported for smooth operation. The A4040 also features an aluminum center section case for efficient heat dissipation, plus low deadband and high resolution. Like all Spektrum servos, the A4040 delivers reliability, consistency and performance that are second to none.
Specifications
Application- Airplane
- Bearing
- Single BB
- Bushing Or Bearing
- Bearing
- Connector Type
- Universal
- Deadband
- <1µs
- Gear Type
- Metal
- Input Voltage
- 4.8V-8.4V
- Maximum Servo Speed
- 0.16 sec/60 deg @ 6.0V; 0.12 sec/60 deg @ 7.4V; 0.10 sec/60 deg @ 8.4V
- Maximum Servo Torque
- 84 oz-in (6.05kg-cm) @ 6.0V; 91 oz-in (6.55kg-cm) @ 7.4V; 96 oz-in (7kg-cm) @ 8.4V
- Overload Protection
- No
- Product Application
- Air
- Product Height
- 1.23" (31 mm)
- Product Length
- 1.1" (28 mm)
- Product Weight
- 0.9oz (26g)
- Product Width
- 0.54" (14 mm)
- Programmable
- No
- Prop 65
-
California Residents Prop 65 WARNINGS.
- Servo Operating Voltage
- 4.8 - 8.4V (HV)
- Servo Size Category
- Micro
- Servo Type
- Digital
- Spline Count
- 23 - Tooth
- Water-Resistant
- No
- Wire Gauge
- 22 AWG
