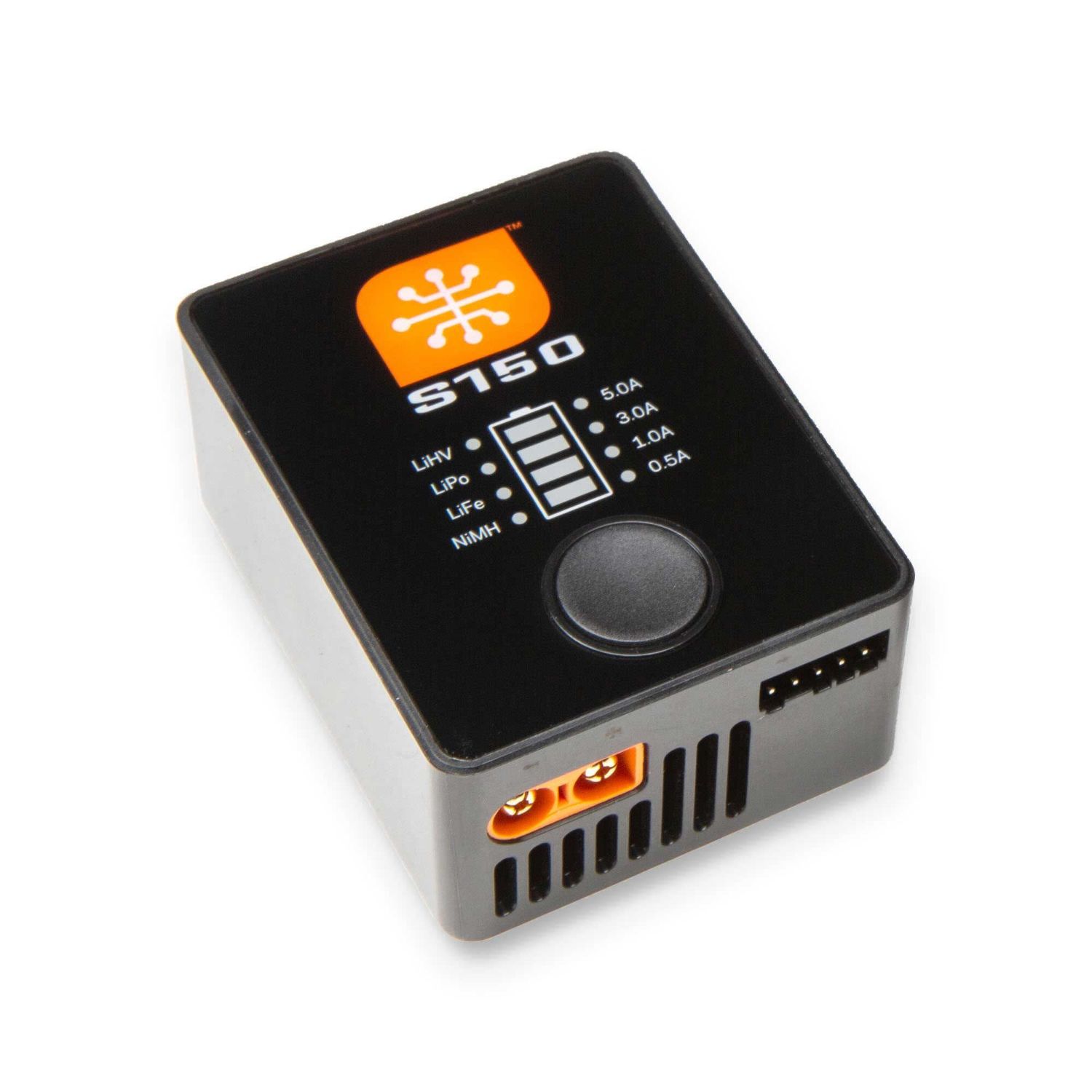

SPMXC1070 Spektrum Smart S150 AC/DC Charger, 1x50W
Product Details
UPC: 605482428122
Brand: Spektrum
Overview
Features
- Recognizes unique Smart battery data for safe, easy charging
- Charges 2-4S LiPo, Lilon, LiHV, LiFe batteries 300mAh and above
- Also charges 2-12 cell NiMH batteries
- Can also be used to charge batteries without Smart technology
- 50 watts of charging power, up to 5 amps of charge current
- Compact, easily portable design
- One-button interface and simple to understand charging indicator
- Adaptable for AC power input (includes AC to 20V DC power supply)
- Quiet internal cooling fan maintains a safe, efficient operating temperature
- Accepts future Smart technology updates
Overview
With the compact S150 AC Mini Smart Charger, modelers of all experience levels can enjoy the charging advantages of innovative Spektrum™ Smart technology. This 50 watt charger brings advanced Smart charging capabilities and features to an affordable platform that features an easy-to-use, one-button interface.
When used with Spektrum Smart batteries with an IC3™ or IC5™ connector, the S150 uploads charging data from each battery's integrated memory chip. That pack-specific data helps you evaluate battery health and makes charging a snap — because the S150 can read and make the correct chemistry setting automatically. The S150 AC Mini Smart Charger is compatible with LiPo, Lilon, LiHV, and NiMH battery types.
Needed to Complete
- Nothing! The Spektrum™ S150 is usable with your Smart batteries, as well as regular, compatible batteries, right out of the box.
What's in the Box?
- (1) Spektrum™ S150 AC Mini Smart Charger
- (1) AC to 20V DC 3 Amp Power Supply
- (1) Product Manual
Specifications
- Amp Meter
- No
- Application
- Battery Charger for Electric Powered RC Vehicles and Aircraft
- Battery Balance Connector
- JST-XH
- Battery Temperature Monitoring
- No
- Battery Type
- LiPo (3.7V per cell)
- Connector Type
- IC3
- Cooling Method
- Fan
- Discharge
- Yes
- Input Voltage
- 100-240V AC
- Integrated Balancing
- Yes - Internal Balancer & Internal Adapter
- Low Input Voltage Protection
- Yes
- Maximum Charge Rate
- 17.4V, 5A, 50W
- Normal/Standard Charge Current
- 1.0 - 5.0A
- Number of Cells
- 2-4S LiPo, LiFe LiHV, LiFe, 2-12 cell NiMH
- Output
- 5A
- Output Connector
- IC3 (compatible with EC3)
- Over Current Protection
- Yes
- Peak Detection
- Yes
- Product Height
- 1.12" (28.5mm)
- Product Length
- 2.5" (65mm)
- Product Weight
- 2.2oz (63g)
- Product Width
- 1.9" (49mm)
- Programmable
- No
- Reverse Polarity Protection
- Yes
- Safety Timer
- Yes
- Search Keywords
- smartspmx_charger
- Selectable Charge Rate
- Yes
- Shape
- Rectangular
- Short Circuit Protection
- Yes
- Technology
- Smart
- Thermal Protection
- Yes
- Voltage Meter
- No
