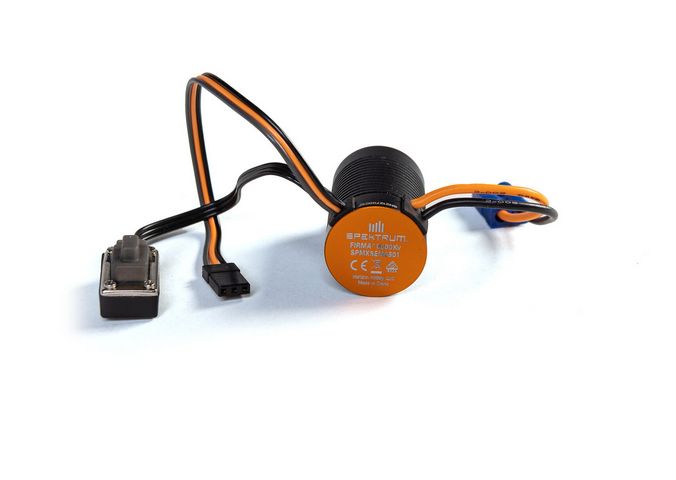

SPMXSEM0501 Spektrum Firma Brushless Motor / ESC 2-in-1 Combo, 6000Kv EC2
Product Details
UPC: 605482164785
Brand: Spektrum
If using with batteries featuring an IC2 connector the adapter SPMXCA321 is required.
Product Details
In The Box
- (1) Firma 2 in 1 Brushless ESC + 6000kv motor
- (1) Product Manual
Overview
The Spektrum Firma 2 in 1 Brushless ESC and 6000kv motor is a powerful brushless upgrade for your 280 size and mini size models. These systems contain a high-torque and high speed 6000kv brushless sensorless motor that is designed for bashing and sport racing applications. The motor features the same basic dimensions and mounting patterns as industry-standard, 1/16 to 1/18, 280-size brushed motors, making it easy to install and setup. These motors also offer high performance over a longer lifetime with little to no maintenance.
- Drop-in brushless upgrade for Losi Mini-T, Mini-B and Mini JRX2/JRXT
- Integrated 20 amp esc
- 2 in 1 design reduces space requirements
- EC2 connector that is compatible with popular battery types used in 1/18th scale models
- Perfect upgrade for brushed 280 motors with the same diameter
Features
- Drop-in brushless upgrade for Losi Mini-T, Mini-B and Mini JRX2/JRXT
- Integrated 20 amp ESC
- 2 in 1 design reduces space requirements
- EC2 connector that is compatible with popular battery types used in 1/18th scale models
- Perfect upgrade for brushed 280 motors with the same diameter
- Industry standard mounting hole patterns
- High torque and high RPM 6000kv Brushless Sensorless motor
- Counter-clockwise operation only
- Easy programming via one-button interface
- High-quality construction with ball bearings
- Hardened steel 2mm motor shaft
- Low maintenance design
- Easy installation
Product Specs
BEC
Yes
Input Voltage
2S LiPo
RPM/Volt (Kv)
6000
BEC Type
Switching
Motor Design
Inrunner
Maximum Burst Current
40A
Maximum Continuous Current
20A
Motor Type
Brushless
Speed Control
Included
Outer Diameter
0.94" (24 mm)
Connector Type
EC2
Product Length
1.41" (36 mm)
Auto Cutoff
Yes
BEC Continous Current
1A
Overload Protection
Yes
Shaft Diameter
0.07" (2 mm)
Forward
Yes
Reverse
Yes
Compatibility:
- LOS01023
1/16 1970 Chevy Chevelle 2WD Mini No Prep Drag Car RTR
- LOS01016
1/16 Mini-B 2WD Buggy Brushed RTR
- LOS01025
1/16 Mini-B Pro 2WD Buggy Roller
- LOS01020
1/16 Mini JRX2 Brushed 2WD Buggy RTR
- LOS01021
1/16 Mini JRXT Brushed 2WD Limited Edition Racing Monster Truck RTR
- LOS01015
1/18 Mini-T 2.0 2WD Stadium Truck Brushed RTR
- LOS01019
1/18 Mini-T 2.0 2WD Stadium Truck Brushless RTR
