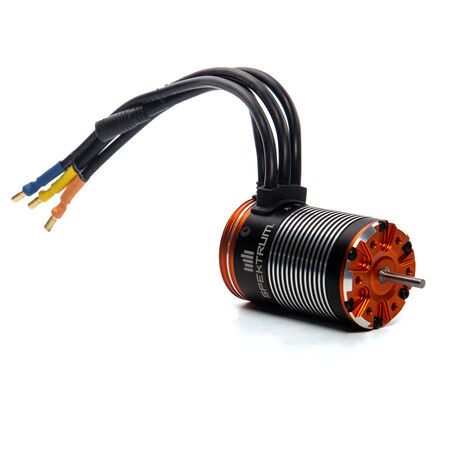

SPMXSM3000 Spektrum Firma 1400Kv Brushless Sensored Crawler Motor
Product Details
UPC: 605482725627
Brand: Spektrum
Overview
The Firma 1400Kv Sensored brushless motor is a great choice for 1/10 scale crawlers, rock racers, and trailers running on 2S – 3S LiPo power. Featuring a low cog 4-pole 8-magnet rotor design, CNC machined aluminum housing, insulated high purity copper windings, high-quality alloy steel 3.175mm (1/8") output shaft, and precision bearings for high durability and smooth rotation. Preinstalled with 3.5mm gold plated bullet connectors for easy installation. The Spektrum FIRMA 60A Sensored Brushless Smart Crawler ESC is required.
Features
- Excellent upgrade for 540 brushed motors with the same diameter and mounting pattern (vehicle must accept pinions with a 1/8" mm bore)
- Perfect for low speed, high torque applications such as competition crawlers
- High-quality 4-pole sintered rotor
- Polarity protection - magnetic encoder inside the motor guarantees consistency between three phases' signals and always outputs precise signals indicated by rotor position. When installing simply match wire color to esc connectors
- 3.5mm gold plated bullet connectors
- Waterproof sensor wire with locking plug and gasket
- High-quality construction with precision ball bearings and hardened steel 1/8" shaft
Specifications
- Application
- 1/10 scale crawlers, rock racers, and trailers running on 2S-3S LiPo power
- Bushing Or Bearing
- Bearing
- Connector Type
- 3.5mm Bullet
- Constant Wattage
- 250-499W
- Forward
- Yes
- Input Voltage
- 7.4 - 11.1V
- Integrated ESC
- No
- Kv Rating
- 1250-1499Kv
- Main Motor Type
- Brushless
- Maximum Continuous Current
- 25A
- Motor Class
- 1/10 Scale
- Motor Output Lead
- 3.5
- Motor Size
- 540-1400Kv Sensored Brushless
- Motor Type
- Brushless
- Number of Poles
- 4
- Outer Diameter
- 1.42" (36 mm)
- Product Application
- Crawling, Surface
- Product Length
- 2.27" (58 mm)
- Recommended Speed Control
- Spektrum Firma 60A Sensored Brushless Smart Crawler ESC
- Reverse
- Yes
- RPM/Volt (Kv)
- 1400Kv
- Sensor Type
- Sensored FOC
- Sensored
- Yes
- Shaft Diameter
- 0.125" (3 mm)
- Water-Resistant
- Yes
