What You’ll Need:

• Batteries M41 requires dual 2s or 3s LiPo batteries.
• Charger Traxxas EZ-Peak^® Dual 3s (2972) is recommended for easy and fast charging performance.
• AA Alkaline Batteries Four AA alkaline batteries for the transmitter.

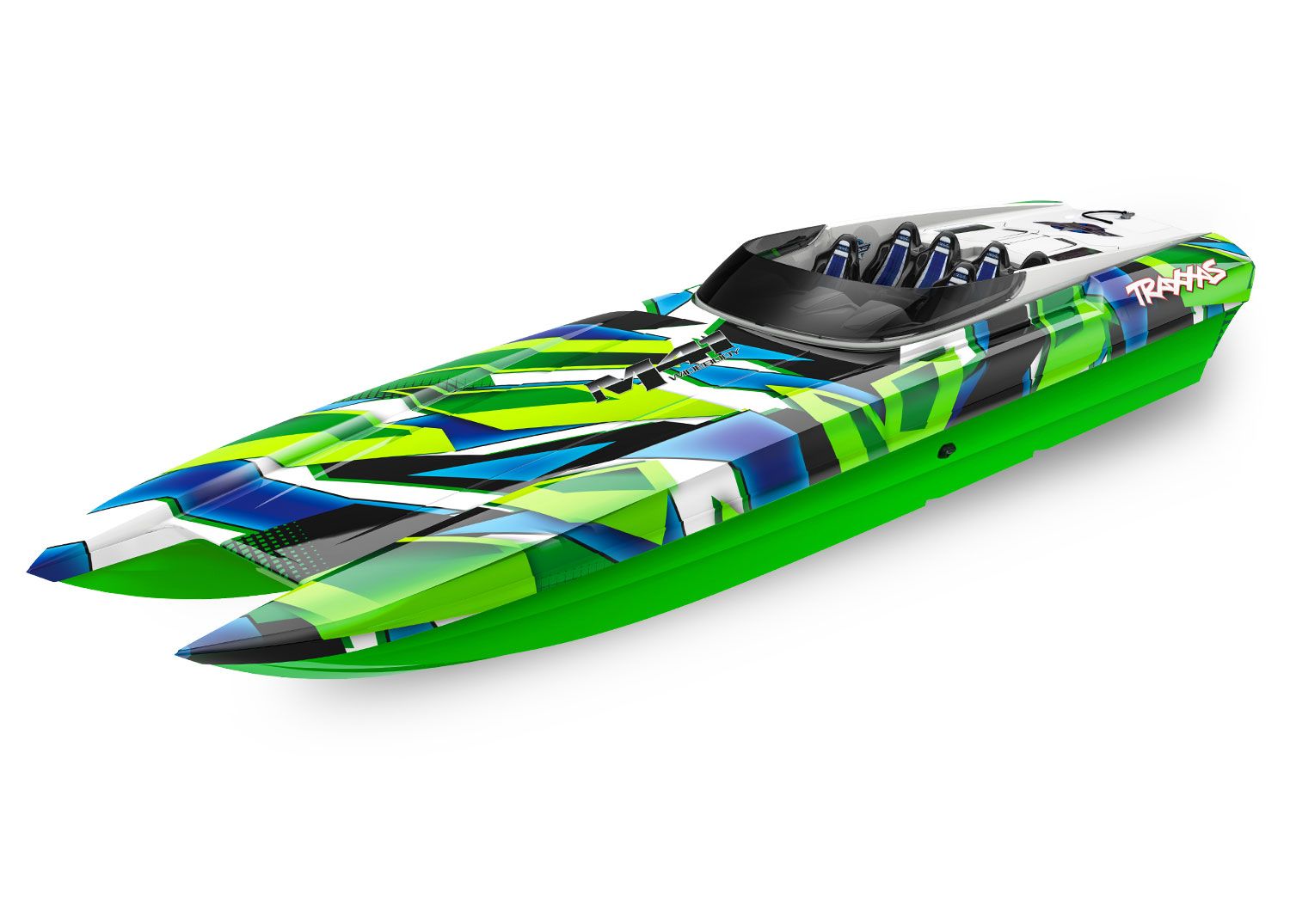

• 40″ DCB M41 Catamaran Hull
  • Replica of Dave’s Custom Boats M41 Widebody
  • Highly detailed cockpit
  • Lightweight ABS hull
  • Reinforced transom
  • Quick-release power module integrates power system, waterproof electronics, and stuffing tube
  • Pre-painted graphics
  • Easy-access hatch with body clip lanyard
  • Molded foam in the bow for extra security
• VXL-6s™ Marine Electronic Speed Control
  • Innovative waterproof design
  • Integrated water cooling
  • Three drive profiles
    • Sport Mode - forward / brake / reverse
    • Race Mode - forward / brake
    • Training Mode™ - 50% forward / brake / 50% reverse (patented)
  • Built-in two-stage low-voltage detection for LiPo batteries
  • Locked rotor protection
  • NiMH battery packs: 12-18 cells (14.4 to 21.6 volts)
  • LiPo battery packs: 4-6 cells (16.8 to 22.2 volts)

• Velineon^® 540XL Brushless Motor
  • 1800 kV
  • 5 mm output shaft
  • Ultra high-temperature sintered neodymium magnets
  • Unique high-flow silicone water cooling jacket
• Traxxas Stability Management^® (TSM)
  • Improves straight line acceleration
  • Never dulls throttle or slows the vehicle
  • Adjusts from off to 100% assistance from the transmitter
• TQi™ 2.4 GHz Radio System
  • 2-channel transmitter
  • 5-channel micro receiver (6533) with fail-safe security and integrated telemetry ports
  • Compatible with optional TQi Traxxas Link Wireless Module (6511) to access full Traxxas Link app functionality (sold separately)
  • Automatically stores and loads settings for up to 30 Traxxas Link enabled models
  • Adjustable steering and throttle sensitivity
  • Adjustable steering and throttle endpoints
  • Patented waterproof receiver box

• Integrated Battery Trays
  • Integrated trays reinforce hull
  • Hold a variety of 2-cell and 3-cell LiPo batteries
  • Batteries can be positioned fore or aft for better balance
• Driveline
  • Quick release flex cable
  • Blue-anodized aluminum drive strut
  • High performance prop
• Steering
  • Waterproof digital 2056 servo
  • Blue-anodized aluminum rudder
  • Stainless steel trim tabs and turn fins
• Low-maintenance bushings
• Stainless Steel Hardware
• Requires Battery and Charger (Sold Separately)

MODEL SPECS

Model Name:	M41 Catamaran
Model Type:	Boats
Model Speed:	50+ mph with two 3-cell LiPo batteries
Model Skill Level:	2
Scale:	1/10
Weight:	5.42 pounds (2.46 kg)
Length:	40.6 inches (1030 mm)
Width:	10.5 inches (267 mm)
Height:	5.95 inches (151 mm)
Drive System:	Direct drive, 0.150" flex cable

Prop:	2-blade composite, 42 mm x 59 mm
Outdrive:	Adjustable aluminum
Hull Length:	39.5 inches (1003 mm)
Dead Rise Angle:	14.5 degrees
Length:	40.6 inches (1030 mm)
Height:	5.95 inches (151 mm)
Beam (Width):	10.5 inches (267 mm)
Hull Type:	Vacu-formed ABS, catamaran
Servo(s):	2056 high-torque waterproof
Radio System:	TQi™ 2.4 GHz 2-channel transmitter with TSM® receiver

MOTOR SPECS

Motor Name:	Velineon® 540XL
Motor Type:	Sensorless brushless
Motor Weight:	13.62 ounces (386 g)
Motor Length:	4.07 inches (103 mm) overall length, 3.25 inches (82 mm) can length
Motor Diameter:	1.42 inches (36 mm)
Motor Shaft Size:	5 mm
Motor Connector Type:	Traxxas 5.5 mm bullet connectors

ESC SPECS

ESC Name:	Velineon® VXL-6s
ESC Type:	Brushless
ESC Case Size:	2.28 inches (58 mm) / 2.83 inches (72 mm) / 1.81 inches (46 mm)
ESC Weight:	7.30 ounces (207 g)
Motor Connectors:	Traxxas 5.5 mm bullet connectors
Battery Connectors:	Traxxas High Current Connector
