What You’ll Need:

• Batteries Stampede 4X4 requires a single NiMH or LiPo battery. See full list of batteries
• Charger Traxxas EZ-Peak^® Live charger (2971) is recommended for easy and fast charging performance
• AA Alkaline Batteries Four AA alkaline batteries for the transmitter

• Clipless Body
  • Tough reinforced bumpers
  • Reinforced inner cage
  • Rugged roof rollover protector
  • Tailgate protector
  • Quick and easy removal
  • Holds tight for intense action
• Extreme Heavy Duty Upgrade Kit Installed
  • Strengthened C-hubs, axle carriers, and steering blocks
  • Extreme heavy duty driveshafts
    • Oversize diameter
    • 6 mm axles
    • Steel wheel hexes
• TQ™ 2.4 GHz Transmitter
  • Full-size 2-channel transmitter
  • All-day comfort with precise long-range control

• BL-2s™ Waterproof Electronic Speed Control
  • Heat sink accepts accessory cooling fan
  • Three Programmable Drive Profiles
    • Sport Mode - Forward / Brake / Reverse
    • Race Mode - Forward / Brake
    • Training Mode™ - 50% Forward / Brake / 50% Reverse (patented)
  • Traxxas EZ-Set^® one-button setup
  • Built-in two-stage low-voltage detection for LiPo batteries
  • NiMH battery packs: 6-7 cells (7.2 to 8.4 volts)
  • LiPo battery packs: 2 cells (7.4 volts)
• BL-2s Brushless Motor
  • Integrated cooling fan
  • Low-maintenance design
  • Efficient ball bearings
  • 3300 kV
• Steering
  • Chassis-mounted 2075 servo
  • Dual bellcrank design with integrated servo saver

• Chassis
  • Modular composite tub design
  • Secure battery hold-down latch
  • High-angle bumpers
• Suspension
  • Heavy duty suspension arms
  • Oil-filled Ultra Shocks™
  • White powder-coated springs
• Drivetrain
  • Full-time shaft-driven 4-wheel drive
  • Oil-filled steel gear front and rear differentials
  • Large 32-pitch steel spur gear
• Wheels and Tires
  • Large 2.8” graphite gray wheels
  • Tall 5.3” Sledgehammer^® tires
• Rubber-Sealed Ball Bearings
• Precision Hex Hardware

MODEL SPECS

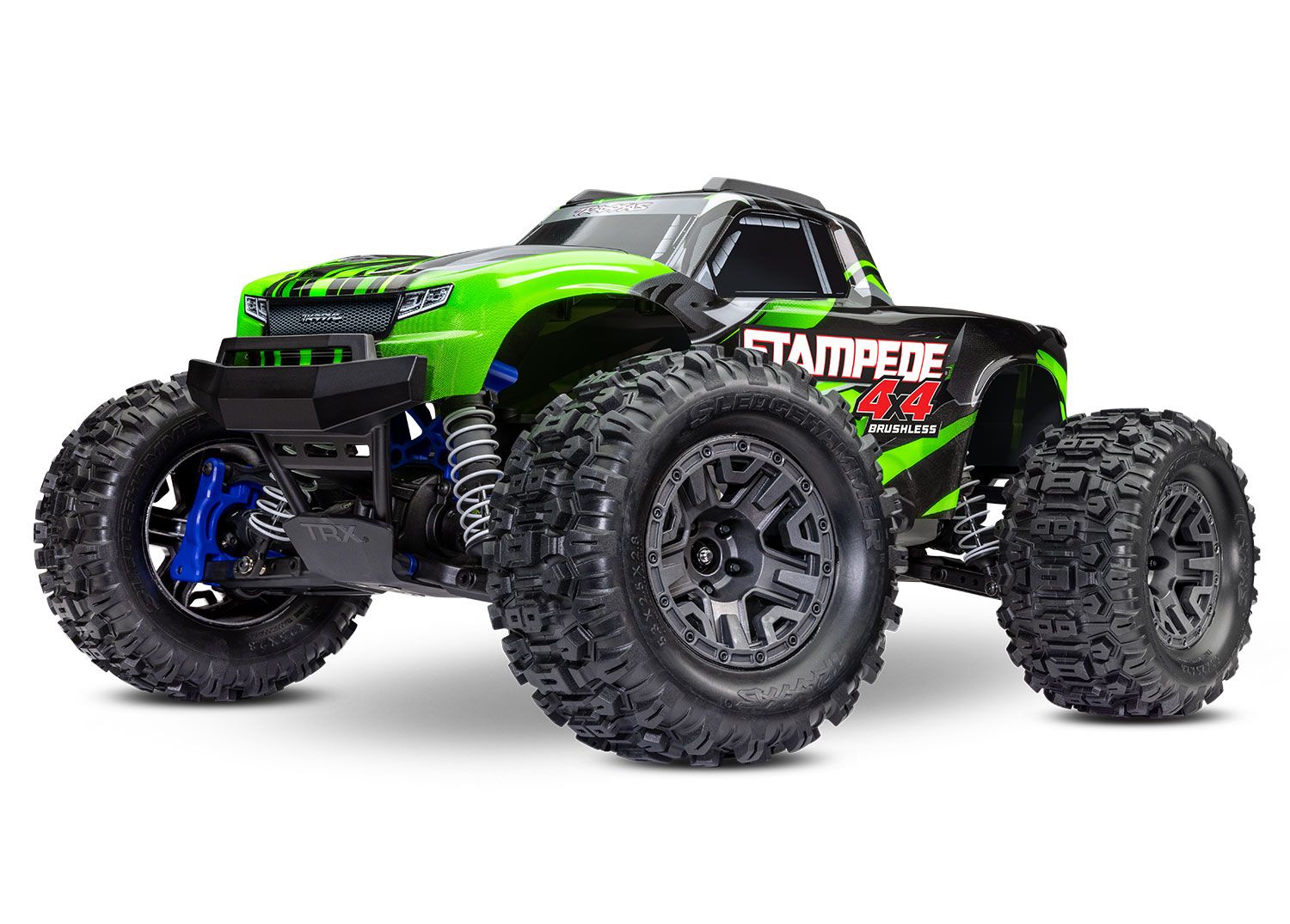

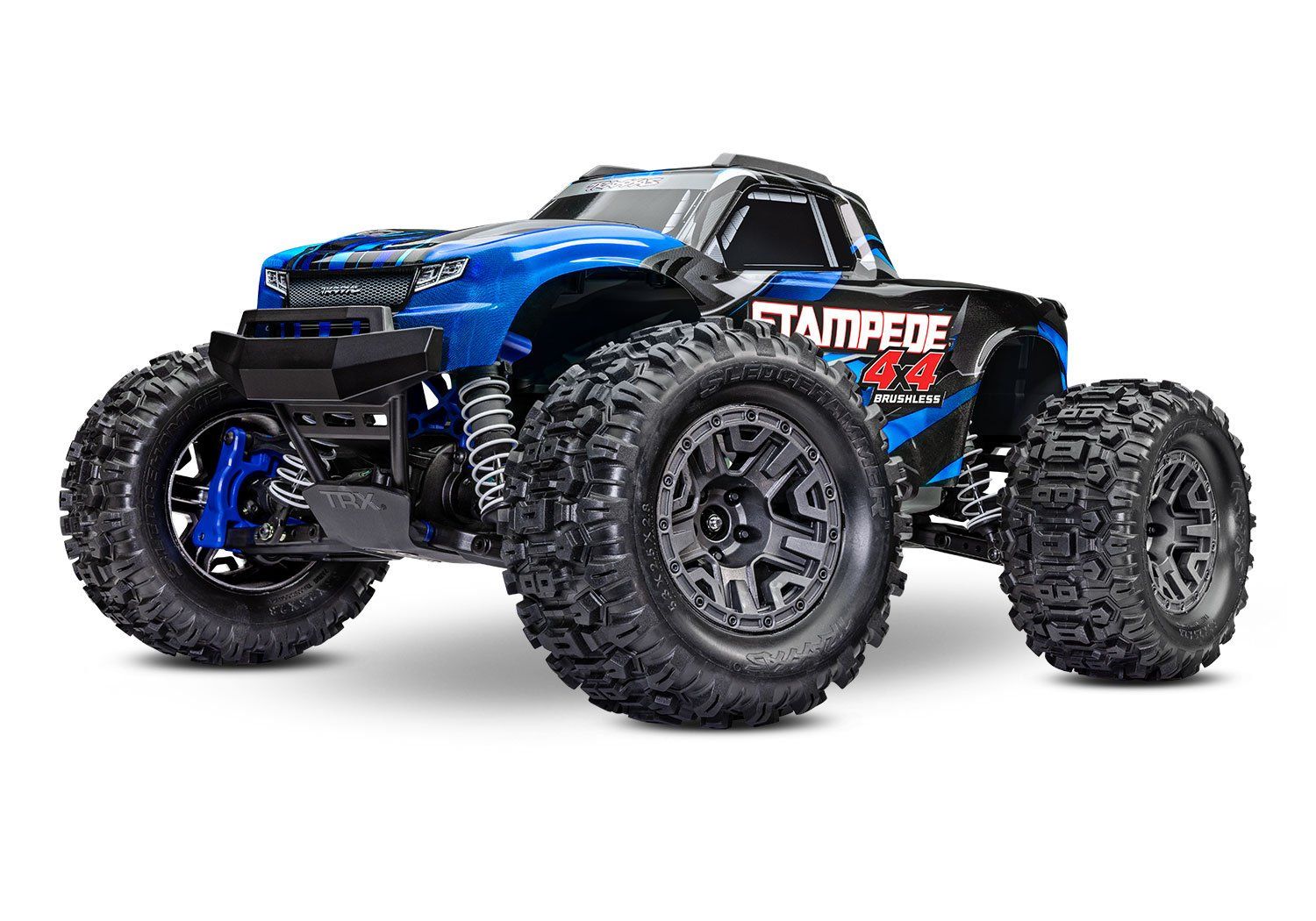

Model Name:	Stampede 4X4 BL-2s
Model Type:	Monster Truck
Model Skill Level:	1
Scale:	1/10
Weight:	5.98 pounds (2.7 kg)
Length:	17.87 inches (454 mm)
Width:	13.10 inches (333 mm)
Front Track:	13.10 inches (333 mm)
Rear Track:	13.10 inches (333 mm)
Height:	8.34 inches (212 mm)

Wheelbase:	11.62 inches (295 mm)
Center Ground Clearance:	2.44 inches (62 mm)
Drive System:	Shaft-driven 4WD
Drivetrain:	Shaft-driven 4WD
Differential Type:	Hardened steel bevel, sealed, limited slip
Gear Ratio (Internal):	15.36:1
Gear Pitch:	32 pitch
Servo(s):	2075 digital high-torque waterproof
Radio System:	2.4 GHz 2-channel radio
Battery Compartment Specs:	162 mm X 50 mm X 26 mm

MOTOR SPECS

Motor Name:	BL-2s 3300 kV
Motor Type:	Sensorless brushless
Motor Weight:	7.51 ounces (213 g)
Motor Length:	3.15 inches (80 mm)
Motor Diameter:	1.42 inches (36 mm)
Motor Shaft Size:	3 mm
Motor Connector Type:	Traxxas Quick Connect Motor Plug

ESC SPECS

ESC Name:	BL-2s Electronic Speed Control
ESC Type:	Brushless
ESC Case Size:	1.53″ (39 mm) x 2.31″ (59 mm) x 1.21″ (31 mm)
ESC Weight:	3.07 ounces (87 g)
Motor Connectors:	Traxxas Quick Connect Motor Plug
Battery Connectors:	Traxxas High-Current Connector
