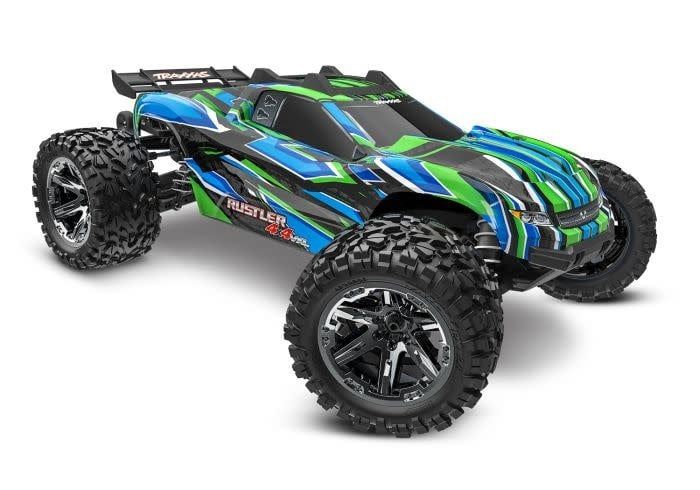

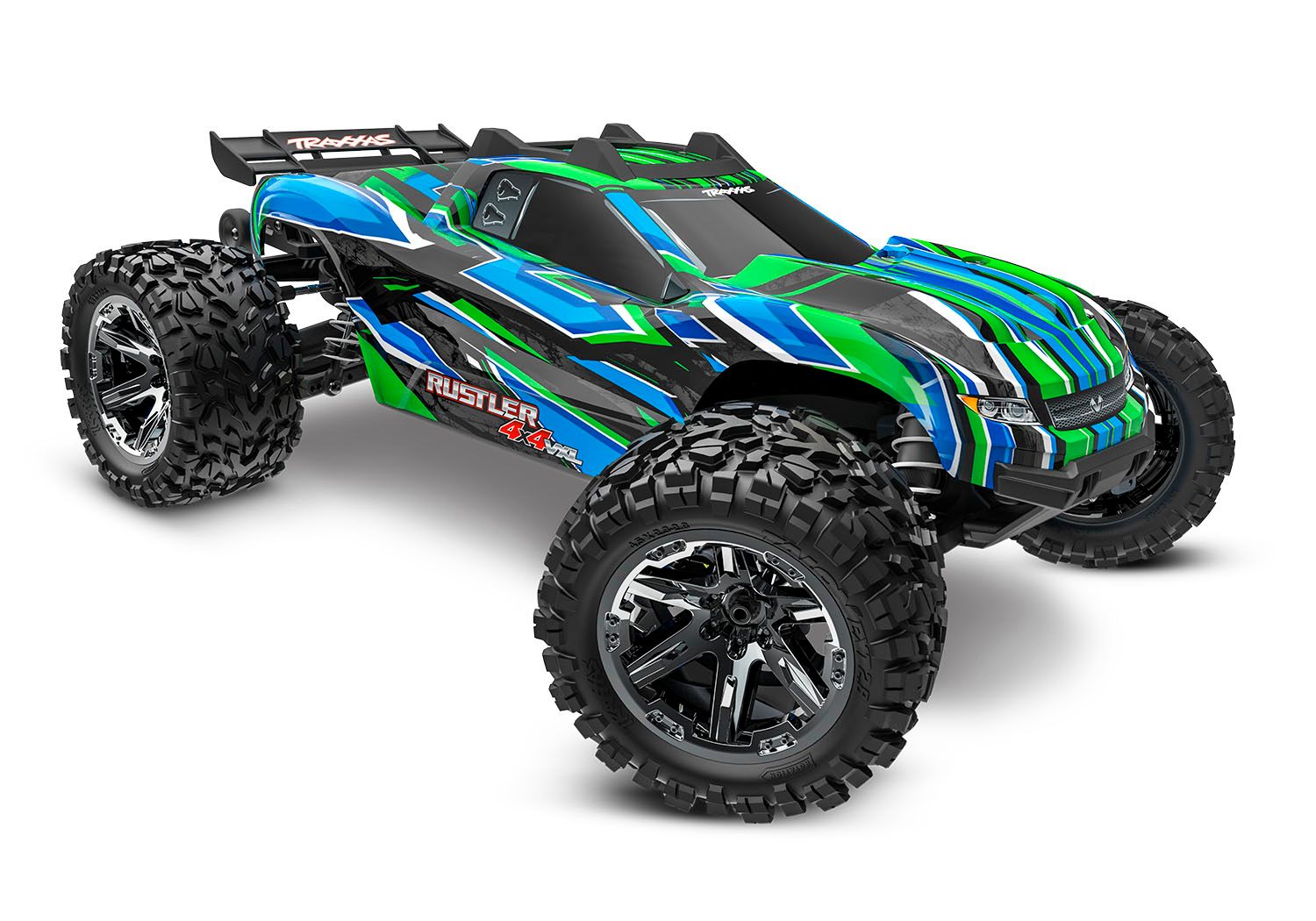

TRA67376-4 Traxxas Rustler 4X4 VXL
Product Details
Brand: Traxxas
UPC: 020334040640
MODEL 67376-4: Rustler® 4X4 VXL: 1/10 scale 4X4 stadium truck, fully-assembled, waterproof electronics, Ready-To-Race®, With TQi™ 2.4 GHz 2-channel radio system, Traxxas Stability Management (TSM)®, VXL-3s™ speed control, and clipless painted body. Requires: battery and charger.
What’s In The Box:
- Rustler 4X4 VXL with Velineon VXL-3s and 3500 Kv motor
- TQi 2.4 GHz radio system
- High quality maintenance tools
- Includes speed pinion
What You’ll Need:
- Batteries Rustler 4X4 VXL accepts a wide variety of NiMH (6–7 cell) and LiPo (2s–3s) batteries.
- Charger The Traxxas EZ-Peak® charger 2970 is recommended for easy and fast charging performance.
- AA Alkaline Batteries Four AA alkaline batteries for the transmitter
- Clipless Painted Body
- Easy one-handed removal
- Reinforced inner cage
- Strong oversized latch
- Rugged roof rollover protector
- Molded composite plastic wing
- Extreme Heavy Duty Upgrade Kit Installed
- Strengthened C-hubs, axle carriers, and steering blocks
- Maxx duty driveshafts
- Oversize diameter
- 6 mm axles
- Steel wheel hexes
- TQi™ 2.4 GHz High Output Radio System
- TQi 2-channel transmitter
- 5-channel micro receiver (6533) with fail-safe security and integrated telemetry ports
- Compatible with optional TQi Traxxas Link Wireless Module (6511) to access full Traxxas Link app functionality (sold separately)
- Automatically stores and loads settings for up to 30 Traxxas Link-enabled models
- Programmable multi-function knob
- Patented waterproof receiver box
- VXL-3s™ Waterproof Electronic Speed Control
- Three programmable drive profiles:
- Sport Mode - Forward / Brake / Reverse
- Race Mode - Forward / Brake
- Training Mode™ - 50% Forward / Brake / 50% Reverse (patented)
- Traxxas EZ-Set® one-button setup
- Large heat sink
- Built-in two-stage low-voltage detection for LiPo batteries
- NiMH battery packs: 6-9 cells (7.2 to 10.8 volts)
- LiPo battery packs: 2-3 cells (7.4 to 11.1 volts)
- Three programmable drive profiles:
- Velineon® Brushless Motor
- Ultra high-temperature sintered Neodymium magnets
- Low-maintenance design
- Efficient, high-speed ball bearings
- Precision-balanced rotor
- 3500 Kv
- Brilliant blue-anodized finish
- Traxxas Stability Management® (TSM)
- Improves straight line acceleration and braking on low-traction surfaces
- Maintains steering composure to allow throttle-on powerslides
- Never dulls throttle or slows the truck
- Adjusts from off to 100% assistance from the transmitter
- Chassis
- Low-CG design for responsive handling
- Modular composite tub design
- Latching battery hold-down
- Reinforced integrated wheelie bar
- High-approach front bumper to climb curbs
- Driveline
- Full-time shaft-driven 4-wheel drive
- Oil-filled steel gear front and rear differentials
- Large 32-pitch gearing
- Torque Control™ heavy-duty slipper clutch with aluminum pads
- Anodized-aluminum center driveshaft
- Steering
- Chassis-mounted 2075 servo
- Dual bellcrank design with integrated servo saver
- Suspension
- Adjustable 4 mm steel toe and camber links
- HD suspension arms
- Oil-filled Ultra Shocks
- Rugged front and rear shock towers
- White powder-coated springs
- Wheels and Tires
- Large 2.8" black chrome wheels
- Talon™ EXT tires
- Sealed Ball Bearings
- Hex hardware with Rust-Resistant Black Oxide Coating
MODEL SPECS
| Name: | Rustler 4X4 VXL |
|---|---|
| Type: | Stadium Truck |
| Speed: | 65+ mph with 3-cell LiPo and 20/54 gearing |
| Skill Level: | 2 |
| Scale: | 1/10 |
| Weight: | 5.12 pounds (2.32 kg) |
| Length: | 18.78 inches (477 mm) |
| Width: | 12.94 inches (329 mm) |
| Front Track: | 12.94 inches (329 mm) |
| Rear Track: | 12.94 inches (329 mm) |
| Height: | 6.35 inches (161 mm) |
| Wheelbase: | 11.62 inches (295 mm) |
|---|---|
| Center Ground Clearance: | 1.1 inches (27 mm) |
| Driveline: | Shaft driven 4WD |
| Transmission: | Single speed |
| Differential Type: | Hardened steel bevel, sealed, limited slip |
| Gear Ratio (Internal): | 13.97:1 |
| Gear Pitch: | 32 pitch |
| Steering Servo: | 2075 digital high-torque waterproof |
| Radio System: | TQi™ 2.4 GHz 2-channel transmitter with TSM® receiver |
| Battery Compartment Specs: | 162 mm X 50 mm X 23 mm, 25 mm |
MOTOR SPECS
| Name: | Velineon® 3500 |
|---|---|
| Motor Type: | Sensorless brushless |
| Weight: | 9.24 ounces (262 g) |
| Length: | 3.03 inches (77 mm) overall length, 2.2 inches (56 mm) can length |
| Diameter: | 1.41 inches (36 mm) |
| Shaft Size: | 3 mm |
| Connector Type: | 3.5 mm bullet |
ESC SPECS
| Name: | VXL-3s™ electronic speed control |
|---|---|
| ESC Type: | Brushless |
| Case Size: | 1.54 inches (39 mm) / 2.18 inches (55 mm) / 1.30 inches (33 mm) |
| Weight: | 3.17 ounces (90 g) |
| Motor Connectors: | 3.5 mm bullet |
| Battery Connectors: | Traxxas High-Current Connector |
| Power Wire: | 12 gauge Maxx® Cable |
