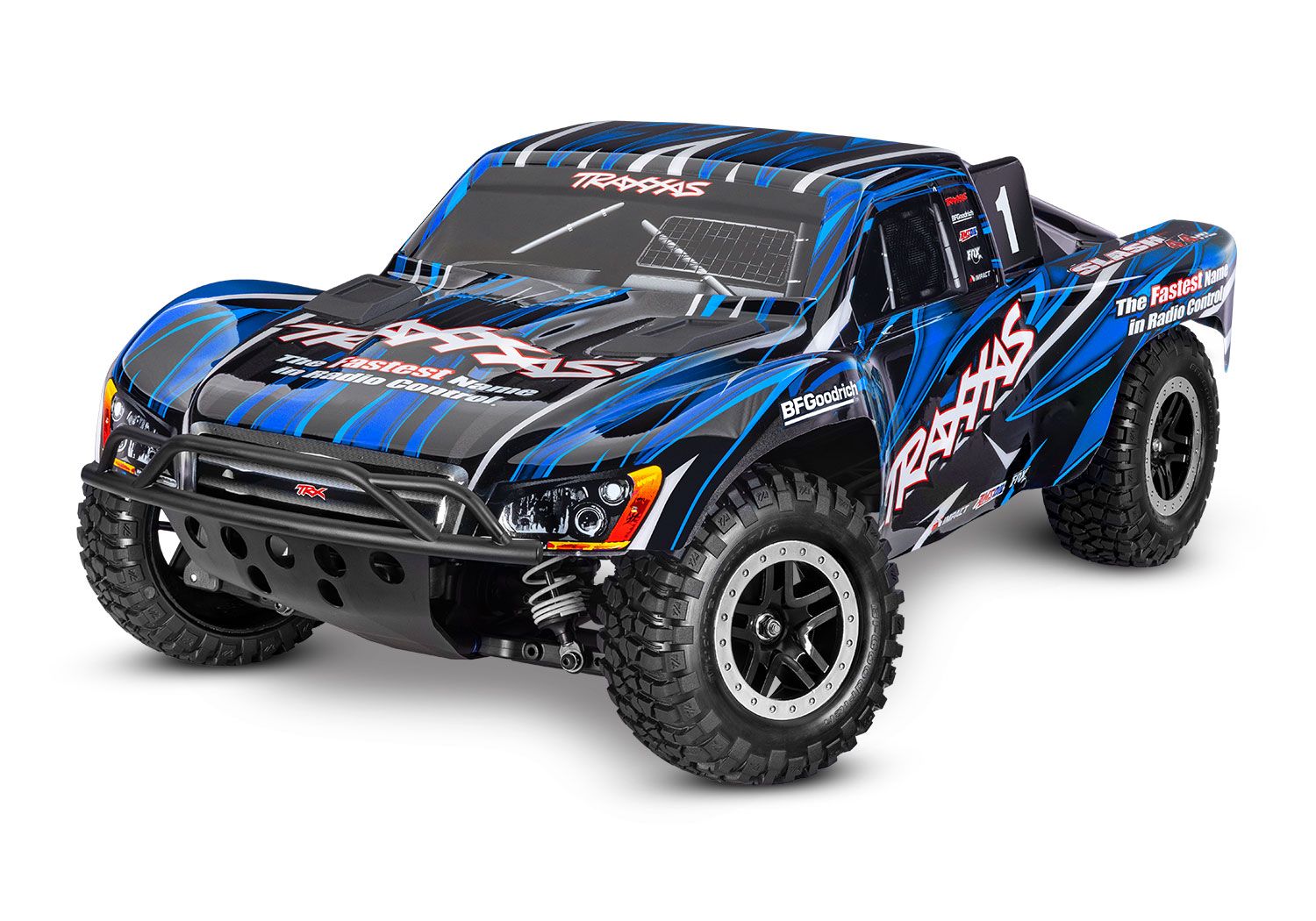

TRA68386-4 Traxxas Slash 4X4 VXL HD 1/10 4WD SCT
Product Details
Brand: Traxxas
UPC: 020334026958
- Clipless Painted Body
- Pre-painted body with applied decals
- Scale dimensions and looks of actual short course race trucks
- Chassis nerf bars absorb impact and support the body
- Scale front and rear tube-style bumpers
- Extreme Heavy Duty Upgrade Kit Installed
- Strengthened C-hubs, axle carriers, steering blocks, and shock towers
- Maxx-duty® driveshafts
- Oversize diameter
- 6 mm axles
- Steel wheel hexes
- VXL-3s™ Waterproof Electronic Speed Control
- Three programmable drive profiles:
- Sport Mode - Forward / Brake / Reverse
- Race Mode - Forward / Brake
- Training Mode™ - 50% Forward / Brake / 50% Reverse (patented)
- Traxxas EZ-Set® one-button setup
- Large heat sink
- Built-in two-stage low-voltage detection for LiPo batteries
- NiMH battery packs: 6-9 cells (7.2 to 10.8 volts)
- LiPo battery packs: 2-3 cells (7.4 to 11.1 volts)
- Three programmable drive profiles:
- Velineon® Brushless Motor
- Ultra high-temperature sintered Neodymium magnets
- Optimized for power and efficiency in 1/10th scale vehicles
- Low-maintenance, unique Traxxas design
- Efficient, high-speed ball bearings
- Precision-balanced rotor
- 3500 Kv
- Brilliant blue-anodized finish
- Traxxas Stability Management® (TSM)
- Improves straight line acceleration and braking on low-traction surfaces
- Maintains steering composure to allow throttle-on powerslides
- Never dulls throttle or slows the truck
- Adjusts from off to 100% assistance from the transmitter
- TQi™ 2.4 GHz High Output Radio System
- TQi 2-channel transmitter
- 5-channel micro receiver (6533) with fail-safe security and integrated telemetry ports
- Compatible with optional TQi Traxxas Link Wireless Module (6511) to access full Traxxas Link app functionality (sold separately)
- Automatically stores and loads settings for up to 30 Traxxas Link-enabled models
- Programmable multi-function knob
- Adjustable steering and throttle percentage (dual rates)
- Adjustable steering and throttle sensitivity (exponential)
- Adjustable steering and throttle end points
- Patented waterproof receiver box
- Tough Fiber-Composite Modular Chassis
- Modular chassis makes maintenance quick and easy
- Long 12.75" wheelbase for increased stability
- Easy motor access with single-screw motor plate attachment
- All electronics securely fastened to chassis
- Easy Access Battery Compartment
- Adjustable battery hold down
- Accepts 6- and 7-cell flat packs and 7-cell and 8-cell hump packs
- Accepts many 2s and 3s LiPo battery configurations
- Transmission and Driveline
- Full-time shaft-driven 4WD
- Blue-anodized aluminum center driveshaft
- Heavy-duty slipper clutch & large 32-pitch gears
- Sealed, silicone-filled differentials with steel gears
- Steering
- Digital high-torque 2075 waterproof steering servo
- Dual bellcrank steering system with integrated servo saver
- Suspension
- Heavy-duty composite suspension arms
- Adjustable steel turnbuckles
- Captured rod ends won't pop off
- Springs and Shocks
- Fully adjustable oil-filled Ultra Shocks™ with X-ring technology
- Race-tuned progressive rate white powder-coated springs
- Wheels and Tires
- Pre-glued BFGoodrich® Mud Terrain T/A® tires with performance foam inserts
- 2" outer diameter, 3" inner diameter dual-profile SCT wheels
- Rubber-Sealed Ball Bearings
- Precision Hex Hardware
- Backed by Unparalleled Traxxas Support and Parts Availability
- Requires Battery and Charger (Sold Separately)
MODEL SPECS
| Name: | Slash 4X4 VXL HD |
|---|---|
| Type: | Short Course Truck |
| Speed: | 60+ mph with optional gearing and 3S LiPo battery (items sold separately) |
| Skill Level: | 2 |
| Scale: | 1/10 |
| Weight: | 5.82 pounds (2.64 kg) |
| Length: | 22.36 inches (568 mm) |
| Width: | 11.65 inches (296 mm) |
| Front Track: | 11.65 inches (296 mm) |
| Rear Track: | 11.65 inches (296 mm) |
| Height: | 7.60 inches (193 mm) |
|---|---|
| Wheelbase: | 12.75 inches (324 mm) |
| Center Ground Clearance: | 2.83 inches (72 mm) |
| Driveline: | Shaft-driven 4WD |
| Differential Type: | Hardened steel bevel, sealed, limited slip |
| Gear Ratio (Internal): | 11.82:1 |
| Gear Pitch: | 32 pitch |
| Steering Servo: | 2075 digital high-torque waterproof |
| Radio System: | TQi™ 2.4 GHz 2-channel transmitter with TSM® receiver |
| Battery Compartment Specs: | 165 mm X 50 mm X 23 mm / 25 mm |
MOTOR SPECS
| Name: | Velineon® 3500 |
|---|---|
| Type: | Sensorless brushless |
| Weight: | 9.24 ounces (262 g) |
| Length: | 3.03 inches (77 mm) overall length, 2.2 inches (56 mm) can length |
| Diameter: | 1.41 inches (36 mm) |
| Shaft Size: | 3 mm |
| Motor Connector Type: | 3.5 mm bullet |
ESC SPECS
| Name: | VXL-3s™ electronic speed control |
|---|---|
| Type: | Brushless |
| Case Size: | 1.54 inches (39 mm) / 2.18 inches (55 mm) / 1.30 inches (33 mm) |
| Weight: | 3.17 ounces (90 g) |
| Motor Connectors: | 3.5 mm bullet |
| Battery Connectors: | Traxxas High-Current Connector |
| Power Wire: | 12 gauge Maxx® Cable |
MODEL 68386-4: Slash® 4X4 VXL-3s: 1/10 scale brushless short course truck, fully-assembled, waterproof electronics, Ready-To-Race®, with TQi™ 2.4 GHz 2-channel radio system, Velineon® VXL-3s™ extreme brushless power system, and clipless painted body. Requires: battery and charger.
What’s In The Box:
- Slash 4X4 with VXL-3s ESC and brushless motor
- TQi 2.4 GHz radio system
- High quality maintenance tools
What You’ll Need:
- Batteries Slash 4X4 VXL accepts a wide variety of NiMH (6–7 cell) and LiPo (2s–3s) batteries
- Charger The Traxxas EZ-Peak® charger 2970 is recommended for easy and fast charging performance.
- AA Alkaline Batteries Four AA alkaline batteries for the transmitter.
