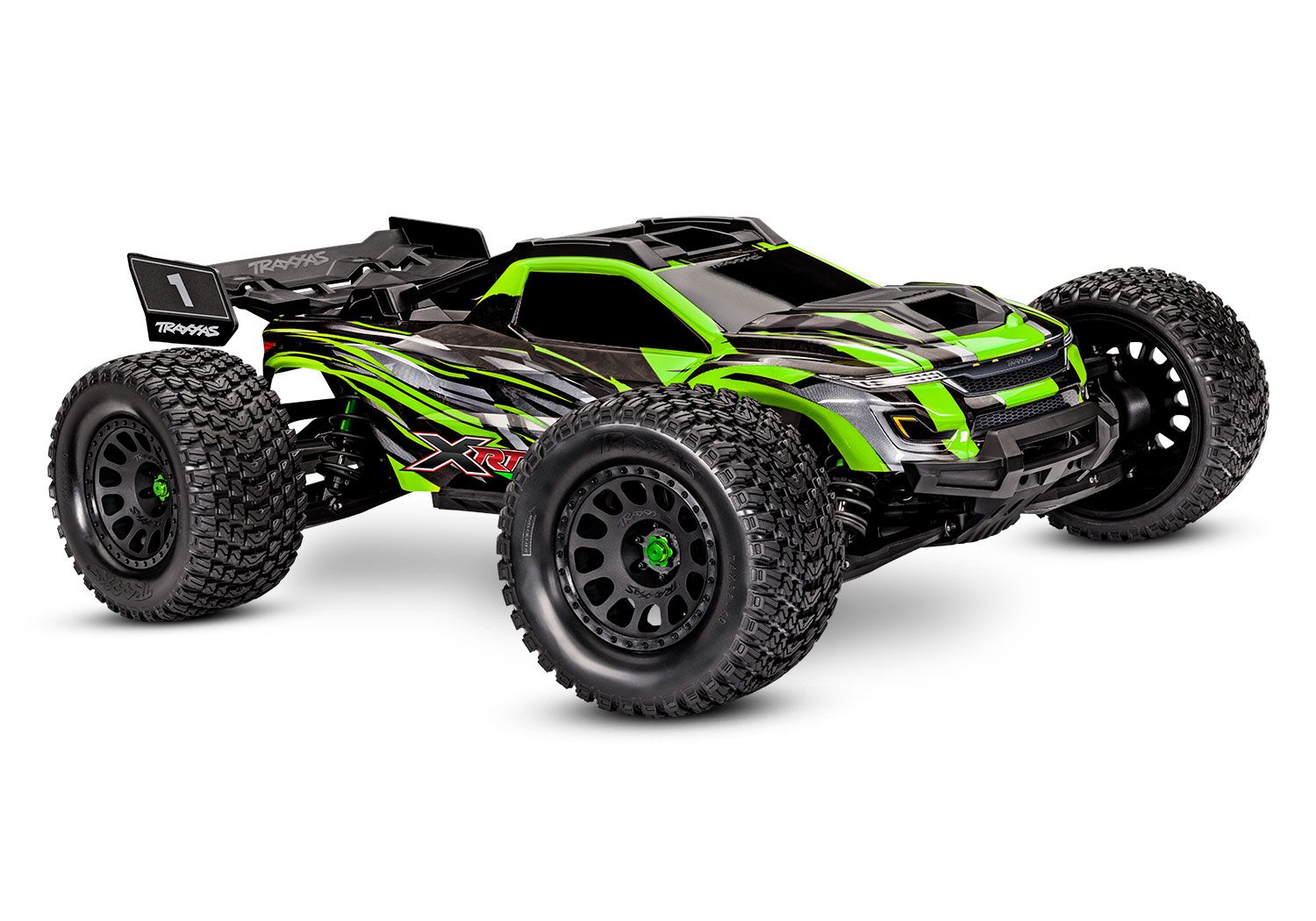

TRA78086-4 Traxxas XRT™: Brushless Electric Race Truck
Product Details
Brand: Traxxas
UPC: 020334781154
Weight: 40.00 lbs
What’s In The Box:
- XRT, Ready-To-Race® model with Traxxas Big Block™ brushless motor
- VXL-8s waterproof electronic speed control with integrated telemetry
- Quick Start Guide
- TQi™ 2.4 GHz radio system
- High quality maintenance tools
- Optional speed gears
What You’ll Need:
- LiPo Batteries Traxxas recommends dual 2890X 4-Cell, 6700 mAh Power Cell LiPo batteries or the 2997 Dual 4s Completer Pack.
- Charger
- EZ Peak Live Dual LiPo Balance Charger with iD®
- AA Alkaline Batteries Four AA alkaline batteries for the transmitter.
- VXL-8s™ Waterproof Electronic Speed Control
- New aggressive tune for more power at any RPM
- 8s LiPo compatible
- Integrated cooling fan
- Real-time telemetry via Traxxas Link
- 3-LED status indicators
- Machined heat sink
- Powered accessory ports
- 10-gauge silicone wire
- Integrated protection circuits
- Velineon®1200XL Brushless Motor
- 4-pole 1275 kV
- 5 mm output shaft
- Oversize aluminum heatsink for improved cooling
- Dual cooling fans
- Up to 60+ mph with Two 4s LiPo Batteries (sold separately)
- Traxxas Stability Management®
- Improves straight line acceleration and braking on low-traction surfaces
- Never dulls throttle or slows the truck
- Adjusts from off to 100% assistance from the transmitter
- TQi™ 2.4 GHz High Output Radio System
- Automatically stores and loads settings for up to 30 Traxxas Link™
- TQi 2-channel transmitter
- TQi 2-channel transmitter
- Traxxas Link enabled
- Traxxas Link enabled
- 2.4 GHz 5-channel micro receiver (6533) with fail-safe security and integrated telemetry ports
- 2.4 GHz 5-channel micro receiver (6533) with fail-safe security and integrated telemetry ports
- Programmable Multi-Function knob
- Programmable Multi-Function knob
- Adjustable steering and throttle percentage (dual rates)
- Adjustable steering and throttle percentage (dual rates)
- Adjustable steering and throttle sensitivity (exponential)
- Adjustable steering and throttle sensitivity (exponential)
- X-Truck™ Drivetrain
- Full-time shaft-driven 4-wheel drive
- Heavy-duty steel CV driveshafts & axles
- Splined aluminum center driveshaft
- Machined aluminum stub axles
- TQi 2-channel transmitter
- Transmission
- Mod-1 pinion and spur gears
- Fixed gear mesh system
- Torque-Biasing Center Drive
- X-Truck Differentials
- Heavy-duty sealed 4-gear design
- Large scale steel ring and pinion gears
- Splined outdrives attached with external thru-bolt method
- New bulkhead and covers increase bearing support
- Rock-Solid Motor Mounting System
- Precise preset gear mesh adjustments
- 4 keyed pins lock the motor in place
- Motor retention separate from gear mesh
- GTX™ Shocks
- Machined aluminum threaded body
- Extra-large bore and capacity
- 5.2 mm damper shaft
- Lower seal cartridge includes integrated wiper seal combination
- Height-adjustable spring retainer
- Heavy-duty composite shock caps with pivot balls
- Lower spring perches bolted on
- WideMaxx® Suspension
- Performance-optimized geometry
- Extra-wide suspension arms
- Made from our strongest cold-weather material
- Double-shear connections
- High-strength steel suspension pins with retainers
- 4 mm machined pivot balls
- Fixed high-strength camber and toe links
- Heavy-duty steering blocks and axle carriers
- Oversized wheel bearings
- Steering
- Powerful 365 oz-in steering servo
- Heavy-duty cam-style servo saver
- Dirt evacuation channels
- Fully waterproof
- Ultra-Low-CG Chassis Design
- Modular chassis with interlocking bulkheads
- Low center of gravity for improved handling
- Flat bottom design
- Heavy-duty interlocking skid plates
- High-strength buttressing on shock towers
- Dual snap-lock battery compartments
- Protects batteries from side impacts
- Allows secondary battery-clip security
- Interlocking components for tight tolerances
- Wire management for clean appearance
- Modular chassis with interlocking bulkheads
- Patent-Pending Clipless Body
- Snaps in place in just seconds
- Secure body latches are easy to use
- Clipless body mounting system
- Rigid internal frame
- Dual high-capacity cooling ducts
- Molded body reinforcements for tear-through protection
- Protective top skids
- Rugged high-downforce rear wing
- Heavy-duty Bumpers
- Reinforced front bumper and rear wing support
- Absorb impact forces while retaining shape
- Heavy-duty front bumper and support
- Reinforced rear wing support
- Nerf bars for side impact resistance
- Heavy-duty wheelie bar with carry handle
- Reinforced front bumper and rear wing support
- Wheels and Tires
- 7.4″ Gravix™ race tires
- Low sidewall for sharp turn-in response
- Thick center carcass resists ballooning at high speed
- Lower rotational mass for faster acceleration
- 3.8″ matte black XRT®
- High-strength glue and bead design
- Huge 24 mm splined wheel hubs
- 7.4″ Gravix™ race tires
- Sealed Ball Bearings
- Hex hardware with Rust-Resistant Black Oxide Coating
MODEL SPECS
| Model Name: | XRT |
|---|---|
| Model Type: | Monster Truck |
| Model Speed: | 60+ mph with dual 4s LiPo batteries and optional gearing |
| Model Skill Level: | 5 |
| Scale: | X-Truck™ |
| Weight: | 21.03 pounds (9.54 kg) |
| Length: | 31.41 inches (798 mm) |
| Width: | 23.43 inches (595 mm) |
| Front Track: | 23.43 inches (595 mm) |
| Rear Track: | 23.43 inches (595 mm) |
| Height: | 10.15 inches (258 mm) |
| Center Ground Clearance: | 1.93 inches (49 mm) |
|---|---|
| Drivetrain: | Shaft-driven 4WD |
| Transmission: | Single speed |
| Differential Type: | Sealed, hardened steel bevel, limited slip |
| Gear Pitch: | 1.0 metric pitch |
| Servo(s): | 2085 digital high-torque waterproof |
| Radio System: | TQi™ 2.4 GHz 2-channel transmitter with TSM® receiver |
| Battery Compartment Specs: | 185 mm X 51 mm X 44 mm |
MOTOR SPECS
| Motor Name: | Velineon® 1200XL |
|---|---|
| Motor Type: | 1275 kV sensorless brushless |
| Motor Weight: | 23.44 ounces (665 g) |
| Motor Length: | 4.32 inches (110 mm) |
| Motor Diameter: | 1.88 inches (48 mm) |
| Motor Shaft Size: | 5 mm |
| Motor Connector Type: | 6.5 mm bullet connectors |
ESC SPECS
| ESC Name: | Velineon® VXL-8s |
|---|---|
| ESC Type: | Brushless |
| ESC Case Size: | 2.23 inches (58 mm) / 2.83 inches (72 mm) / 1.81 inches (46 mm) |
| ESC Weight: | 7.60 ounces (215.5 g) |
| Motor Connectors: | 6.5 mm bullet connectors |
| Battery Connectors: | Traxxas High-Current Connectors |
| ESC Power Wire: | 10 gauge Maxx® Cable |
