What You’ll Need:

• Batteries TRX-4 accepts a wide variety of NiMH (4–7 cell) and LiPo (2s–3s) batteries.
• Charger Traxxas EZ-Peak^® Live charger is recommended for easy and fast charging performance (model 2971).
• AA Alkaline Batteries Four AA alkaline batteries for the transmitter.

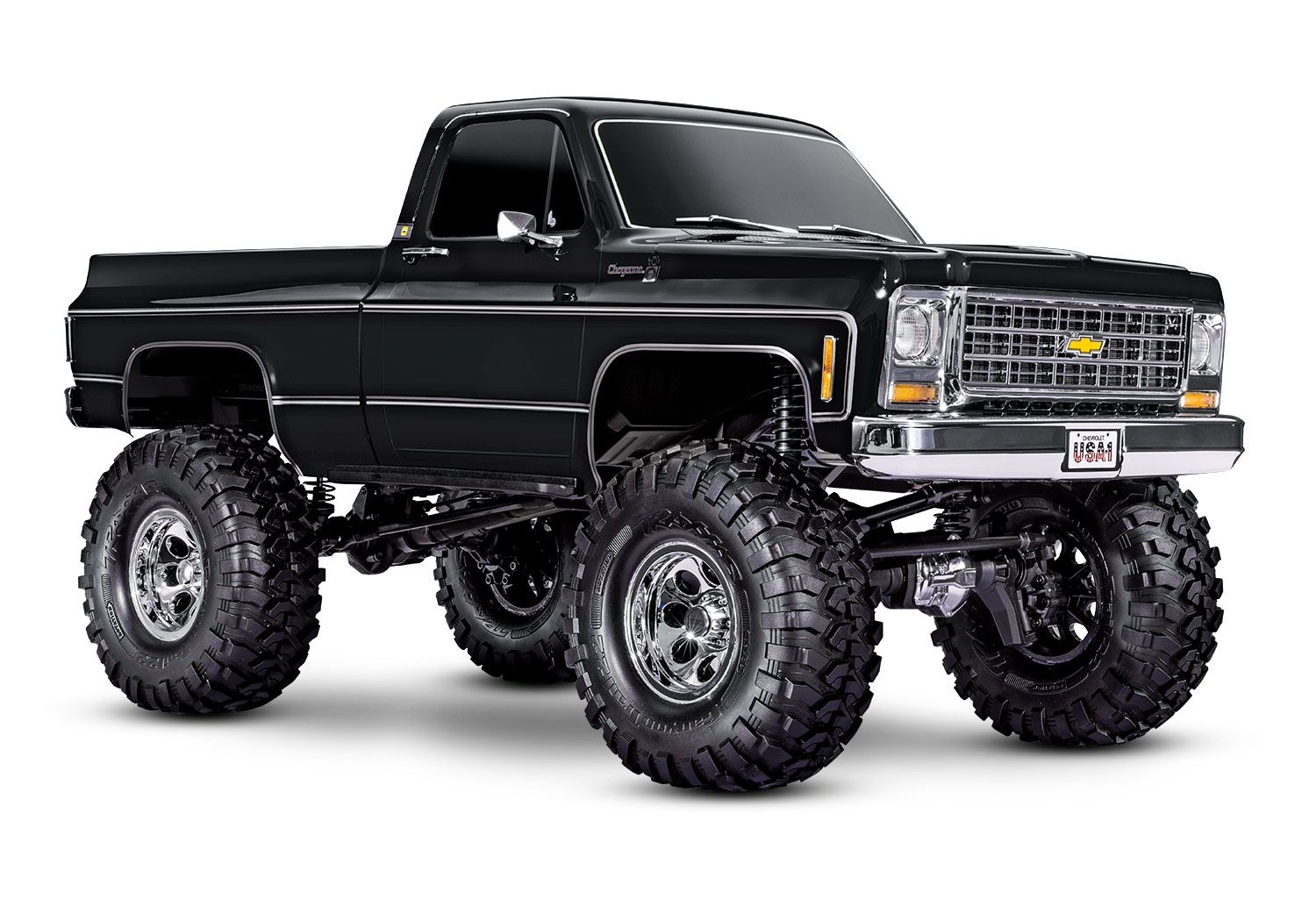

• Officially Licensed 1979 Chevrolet^® K10 Pickup Body

  • Scale details: grille, chrome bumpers, side mirrors, door handles, and wipers
  • LED-ready headlights and tail lights
  • Authentic decal sheet
  • Full Nylon composite wheel wells and floor pans
• Clipless Body mounting

  • Clipless design for smooth body appearance
  • Rugged internal body cage for added rigidity
    • Body details mount directly to internal frame
• Trail-tuned XL-5™ HV Waterproof Electronic Speed Control
  • Fully waterproof design
  • Five drive profiles
    • Sport Mode — forward / brake / reverse
    • Race Mode — forward / brake / no reverse
    • Training Mode™ - 50% forward / 100% brake / 50% reverse (patented)
    • Trail Mode — forward / brake / reverse / with trail-tuned drag brake in neutral
    • Crawl Mode — forward / instant reverse - no neutral with 100% hill holding brake
  • Traxxas EZ-Set^® one-button setup
  • Large, efficient heat sink
  • Wide voltage latitude 6–7 cell NiMH (7.2–8.4 V) and 2–3s LiPo (7.4–11.1 V)
  • Two stage low voltage protection (LVD)
• Titan^® 550 Motor
  • Powerful Titan 21T reverse rotation motor with internal cooling fan
  • Precision, preset gear mesh adjustments
  • Motor retention separate from gear mesh
• Portal Axles
  • Increase ground clearance
  • Eliminate torque twist
  • Steel gears
  • Improve axle geometry and reduce strain on driveshafts

• Drivetrain
  • Full-time shaft driven 4-wheel drive
  • Tough 6 mm stub axles
  • Steel front CV driveshafts
  • Hardened steel rear axle shafts
  • Remote locking steel gear differentials with cable-actuation
  • Steel gear transfer case
• Factory-Installed Long Arm Lift Kit
  • Increases ground clearance over 1″
  • Maintains precise steering geometry
  • Accommodates oversize 2.2″ wheels and tires
• TQi™ 2.4 GHz Radio System
  • 4-channel transmitter
  • 5-channel micro receiver (6533) with fail-safe security and integrated telemetry ports
  • Compatible with optional TQi Traxxas Link Wireless Module (6511) to access full Traxxas Link app functionality (sold separately)
  • Automatically stores and loads settings for up to 30 Traxxas Link enabled models
  • Exclusive Cruise Control feature for extended trail driving
  • Adjustable steering and throttle sensitivity (exponential)
  • Adjustable steering and throttle endpoints
  • Patented waterproof receiver box with easy-access plug
• Extended Wheelbase
  • Long 336 mm wheelbase for improved stability
  • Full-length 1.5 mm thick steel frame rails
  • Bumpers adjust fore and aft
  • Rugged rock rails adjust for width
  • Wire routing clips integrated into frame rails
• Innovative Battery Compartment
  • Hinged battery strap allows quick and easy battery access
  • No pins to lose
  • Accommodates different height batteries
  • Accepts full-size long battery packs
  • Integrated compartment accepts smaller 1/16 scale batteries (with optional strap)
  • Secondary front battery tray accepts smaller 1/16 scale batteries (with optional strap)

• Transmission
  • Two speed high/low range with remote shifting
  • Dual horizontal shafts
  • Twin friction plate slipper clutch
  • Easily removed for servicing
• Steering
  • Chassis mounted 2075X metal gear digital servo
  • Superior 45° steering angle
  • Direct steering (no servo saver)
  • Steering geometry corrected for bump steer
• Suspension
  • Front — 3 link with panhard
  • Rear — Triangulated 4 link
  • Heavy-duty rod ends with steel hollow balls
  • 5 mm diameter steel link rods with 4 mm threaded ends
• Extended Aluminum GTS Shocks
  • Oil-filled coilover GTS shocks exclusive to TRX-4 chassis
  • Extra-long aluminum bodies for greater articulation
  • Silver-anodized aluminum bodies
  • Threaded bodies with collars easily adjust ride height
  • Silky smooth damping for the toughest trails
  • O-ring cap seal and dual X-ring shaft seals
• Oversize Wheels and Tires
  • 2.2″ 8-hole chrome mag wheels with hub inserts
  • Pre-mounted 2.2″ Canyon Trail tires with trail-tuned foam inserts
  • Trail tuned S1 rubber compound
  • 12 mm steel hex
• Sealed Ball Bearings
• Hex hardware with Rust-Resistant Black Oxide Coating
• Requires Battery and Charger (Sold Separately)

MODEL SPECS

Model Name:	TRX-4 Chevrolet K10 High Trail Edition
Model Type:	Trail / Crawler
Model Skill Level:	1
Scale:	1/10
Weight:	7.38 pounds (3.35 kg)
Length:	22.20 inches (526 mm)
Width:	10.60 inches (270 mm)
Front Track:	10.60 inches (270 mm)
Rear Track:	10.60 inches (270 mm)
Height:	10.89 inches (277 mm)

Wheelbase:	13.20 inches (336 mm)
Center Ground Clearance:	4 inches (102 mm)
Drivetrain:	Shaft-driven 4WD
Transmission:	2-speed high/low, remote shifting
Differential Type:	4 gear, remote locking
Gear Pitch:	32 pitch
Servo(s):	2075X metal gear, digital high-torque waterproof
Radio System:	TQi™ 2.4 GHz 4-channel transmitter with 6533 receiver
Battery Compartment Specs:	159 mm X 47 mm X 23 mm, 26 mm

MOTOR SPECS

Motor Name:	Titan® 550 21T reverse rotation
Motor Type:	High-torque brushed motor
Motor Weight:	8.47 ounces (240 g)
Motor Length:	3.07 inches (78 mm) overall length, 2.25 inches (57 mm) can length
Motor Diameter:	1.53 inches (39 mm)
Motor Shaft Size:	3 mm
Motor Connector Type:	Bullet

ESC SPECS

ESC Name:	XL-5™ HV
ESC Type:	Brushed
ESC Case Size:	1.23 inches (31 mm) / 2.18 inches (55 mm) / 1.04 inches (26 mm)
ESC Weight:	2.6 ounces (74 g)
Motor Connectors:	Bullet
Battery Connectors:	Traxxas High-Current Connector
ESC Power Wire:	14 gauge
