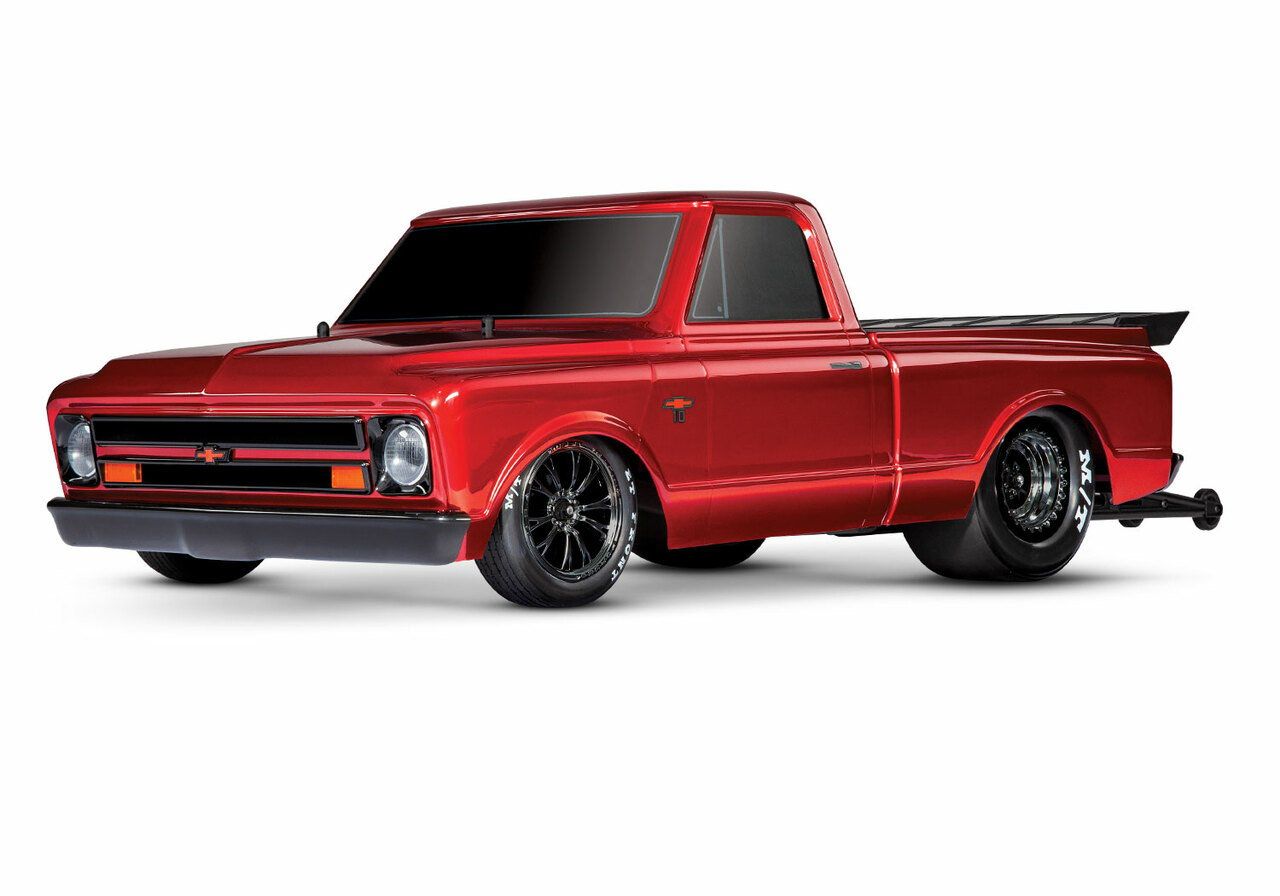

TRA94376-74 Traxxas Drag Slash 1967 Chevrolet C10 HD RTR
Product Details
Brand: Traxxas
UPC: 020334042163
Weight: 15.00 lbs
What’s In The Box:
- Traxxas Drag Slash, Ready-To-Race model with Velineon VXL-3s and 3500 Kv motor
- TQi 3-channel 2.4GHz radio system with Trans Brake
- Quick Start Guide
- Optimized 2s high-speed pinion gear
- High quality maintenance tools
- 26 mm and 18 mm wheelie bar wheels
What You’ll Need:
- Battery Pack Drag Slash performs best with a 2869X 2-cell LiPo battery. See full list of batteries.
- Charger Traxxas EZ-Peak® Live charger (model 2971) is recommended for easy and fast charging performance. Click here for a full list of Traxxas chargers.
- AA Alkaline Batteries Four AA alkaline batteries for the transmitter
- Licensed Chevrolet® C10 Body
- Durable ProGraphix® polycarbonate body
- Available in six rich metallic colors
- Injection-molded bi-level grille
- High-performance injection-molded rear wing
- Provides traction-enhancing downforce
- Reduces drag and turbulence
- LED-ready headlight surrounds
- Deeply recessed bed recreates “tubbed” look
- Durable ProGraphix® polycarbonate body
- Extreme Heavy Duty Parts Installed
- Strengthened C-hubs, axle carriers, and steering blocks
- HD suspension arms
- VXL-3s™ Waterproof Electronic Speed Control
- Three programmable drive profiles:
- Sport Mode - Forward / Brake / Reverse
- Race Mode - Forward / Brake
- Training Mode™ - 50% Forward / Brake / 50% Reverse (patented)
- Traxxas EZ-Set® one-button setup
- High-efficiency heat sink
- Built-in two-stage low-voltage detection for LiPo batteries
- NiMH battery packs: 6-9 cells (7.2 to 10.8 volts)
- LiPo battery packs: 2-3 cells (7.4 to 11.1 volts)
- Three programmable drive profiles:
- Velineon® 3500 Kv Brushless Motor
- Ultra high-temperature sintered Neodymium magnets
- Low-maintenance, unique Traxxas design
- Efficient, high-speed ball bearings
- Precision-balanced rotor
- Brilliant blue-anodized finish
- Traxxas Stability Management® (TSM)
- Improves straight line acceleration and braking on low-traction surfaces
- Never dulls throttle or slows the truck
- Adjusts from off to 100% assistance from the transmitter
- Drag Race Mode to disable TSM where prohibited
- TQi™ 2.4 GHz High Output Radio System
- TQi 3-channel transmitter
- Trans Brake switch for lightning-fast launches
- 5-channel micro receiver (6533) with fail-safe security and integrated telemetry ports
- Compatible with optional TQi Traxxas Link Wireless Module (6511) to access full Traxxas Link app functionality (sold separately)
- Automatically stores and loads settings for up to 30 Traxxas Link-enabled models
- Programmable multi-function knob
- Patented waterproof receiver box
- Low Center of Gravity (Low CG) Chassis
- Positions weight low for improved stability
- Adjustable battery hold down
- Smooth underside reduces drag
- Chassis-mounted front bumper for extra protection
- Magnum 272R™ Transmission
- Redesigned heavy-duty low-CG case
- Heavy-duty 3.2 mm aluminum motor plate
- Case supported bearings
- Fixed gear mesh
- High-strength steel gears
- Sealed bevel-gear differential
- Easy differential access
- Drivetrain
- Modified extreme-duty driveshafts
- Torque Control™ slipper clutch
- Extended Wheelie Bar
- 5 position adjustability
- Reinforced double-ladder construction
- Large and small wheels included to refine tuning
- Steering
- Chassis-mounted 2075 servo
- Dual-bellcrank steering with integrated servo saver
- High Performance Suspension
- 4 mm adjustable steel turnbuckles
- Heavy-duty captured links won’t pop off
- Drag-Tuned Ultra Shocks™
- Fully adjustable and oil-filled with X-ring technology
- Stiffer springs and silicone oil for improved traction
- Custom bump stops provide solid ride control
- Wheels and Tires
- Replica Weld Racing wheels for a classic look
- Replica Thompson® ET Drag® slick tires
- Unique compound balances long life and superior grip
- Molded high-density tire foam
- Webbed inner structure for increased durability
- Rubber-Sealed Ball Bearings
- Precision Hex Hardware
- Requires Battery and Charger (Sold Separately)
MODEL SPECS
| Model Name: | DRAG SLASH C10 HD |
|---|---|
| Model Type: | On-Road Cars |
| Model Skill Level: | 4 |
| Scale: | 1/10 |
| Weight: | 5.23 pounds (2.37 kg) |
| Length: | 29.7 inches (754 mm) (with wheelie bar) |
| Width: | 10.97 inches (279 mm) |
| Front Track: | 9.31 inches (236 mm) |
| Rear Track: | 8.07 inches (205 mm) |
| Height: | 7.7 inches (196 mm) |
| Wheelbase: | 12.86 inches (327 mm) |
|---|---|
| Drivetrain: | 2WD |
| Transmission: | Heavy-duty Magnum™ 272R |
| Differential Type: | Sealed bevel-gear differential |
| Gear Ratio (Internal): | 9.82:1 |
| Gear Pitch: | 48 pitch |
| Servo(s): | 2075 digital high-torque waterproof |
| Radio System: | TQi™ 2.4 GHz 3-channel transmitter with TSM® receiver |
| Battery Compartment Specs: | 165 mm X 49.5 mm X 23 mm, 25 mm |
MOTOR SPECS
| Motor Name: | Velineon® 3500 |
|---|---|
| Motor Type: | Sensorless brushless |
| Motor Weight: | 9.24 ounces (262 g) |
| Motor Length: | 3.03 inches (77 mm) overall length, 2.2 inches (56 mm) can length |
| Motor Diameter: | 1.41 inches (36 mm) |
| Motor Shaft Size: | 3 mm |
| Motor Connector Type: | 3.5 mm bullet |
ESC SPECS
| ESC Name: | VXL-3s™ electronic speed control |
|---|---|
| ESC Type: | Brushless |
| ESC Case Size: | 1.54 inches (39 mm) / 2.18 inches (55 mm) / 1.30 inches (33 mm) |
| ESC Weight: | 3.17 ounces (90 g) |
| Motor Connectors: | 3.5 mm bullet |
| Battery Connectors: | Traxxas High-Current Connector |
| ESC Power Wire: | 12 gauge Maxx® Cable |
