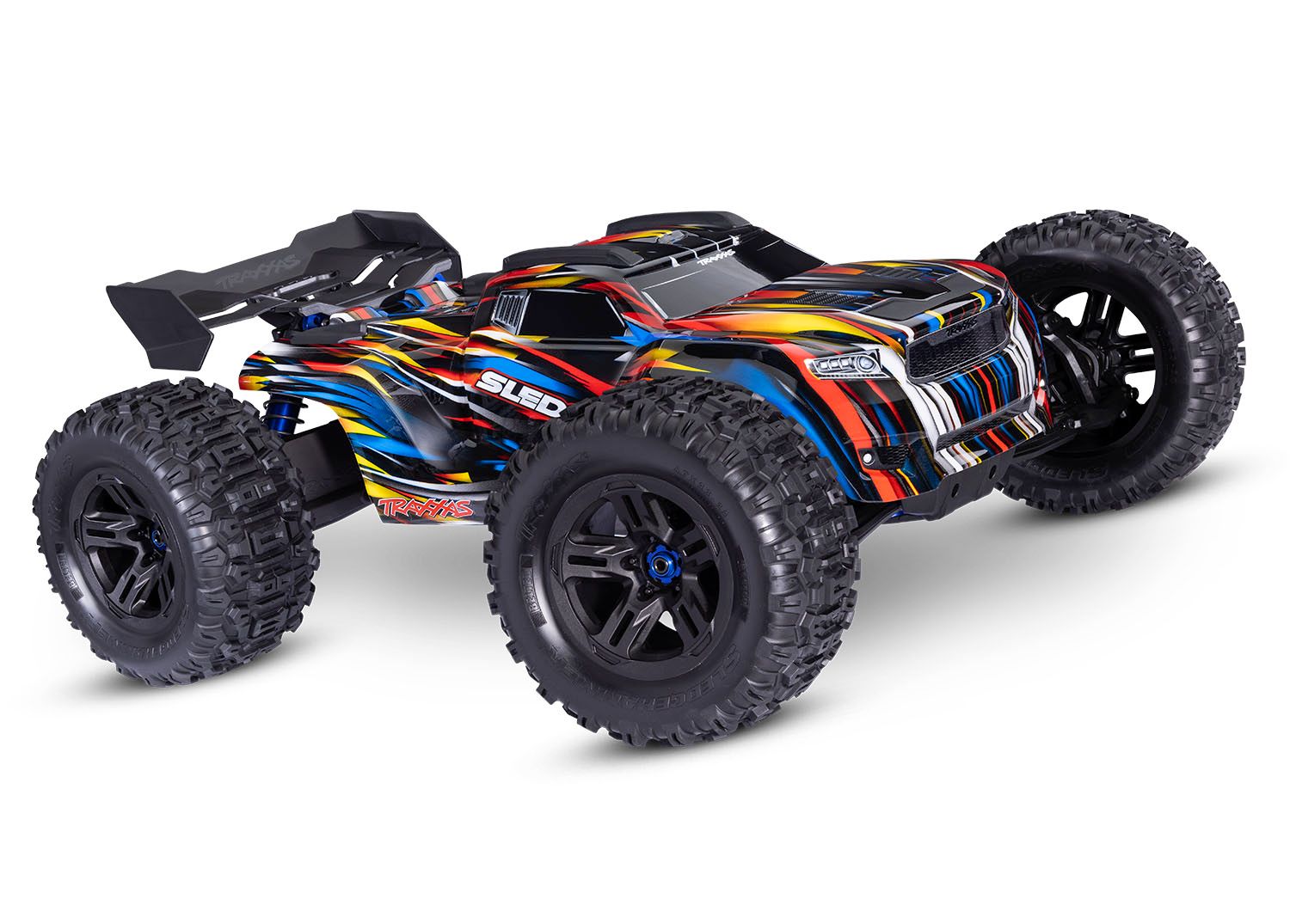

TRA95096-4 Traxxas Sledge 1/8 Scale 4WD Monster Truck Belted Tires
Product Details
Brand: Traxxas
UPC: 020334034625
Weight: 22.00 lbs
What’s In The Box:
- Sledge, Ready-To-Race® monster truck with Traxxas 2000 kV brushless motor
- VXL-6s waterproof electronic speed control with integrated telemetry
- Quick Start Guide
- TQi 2.4 GHz radio system
- High quality maintenance tools
- Jumper plug (for 4s battery use)
What You’ll Need:
- LiPo Batteries Traxxas recommends dual 5000 mAh 3-cell 11.1 V Power Cell LiPo batteries for maximum performance. Dual 7600 mAh 7.4 V LiPo batteries or a single 6700 mAh 14.8 V LiPo battery will operate the vehicle with reduced performance. NiMH batteries are not supported.
- Charger EZ Peak Live Dual 3s LiPo Charger
- AA Alkaline Batteries Four AA alkaline batteries for the transmitter.
- VXL-6s™ Waterproof Electronic Speed Control
- 6s LiPo compatible
- Integrated cooling fan
- Real-time telemetry via Traxxas Link™
- 3-LED status indicators
- Powered accessory ports
- 10-gauge silicone wire
- Integrated protection circuits
- Velineon® 2000 kV Brushless Motor
- 4-pole 2000 kV
- 5 mm output shaft
- Finned can for better heat dissipation
- Aluminum motor cradle mount
- Supports entire motor length
- Reduces flex for longer gear life
- Up to 70+ mph with Two 3s LiPo Batteries (sold separately)
- Traxxas Stability Management®
- Helps prevents spinouts and loss of control
- Never dulls throttle or slows the truck
- Adjusts from off to 100% assistance from the transmitter
- TQi™ 2.4 GHz High Output Radio System
- TQi 2-channel transmitter
- Traxxas Link enabled
- 2.4 GHz 5-channel micro receiver (6533) with fail-safe security and integrated telemetry ports
- Automatically stores and loads settings for up to 30 Traxxas Link-enabled models—just switch on and drive, “model selection” is not required
- Programmable Multi-Function knob
- Adjustable steering and throttle percentage (dual rates)
- Adjustable steering and throttle sensitivity (exponential)
- Drivetrain
- Full-time 4-wheel drive
- Heavy-duty steel driveshafts
- Large 8 mm steel stub axles
- Steel dogbone center driveline
- Protective rubber boots on differential inputs
- Transmission
- Mod-1 pinion and spur gears
- Fixed gear mesh system
- Torque-Biasing Center Drive
- Differentials
- Heavy-duty sealed 4-gear design
- Large scale steel ring and pinion gears
- Large 8 mm output shafts
- Steel drive cups
- Easy access bulkheads
- GT-Maxx®Shocks
- Longer rear shocks for more travel
- Machined aluminum threaded body
- Extra-large bore and capacity
- Large-diameter damper shaft
- Lower seal cartridge with dual X-rings
- Height-adjustable spring retainer
- Lower spring perches bolted on
- Suspension
- Thick 5 mm 6061-T6 aluminum shock towers
- Ultra-tough composite arms
- Made from our strongest cold-weather material
- Molded insert for clean look
- Rear rock deflectors
- Press-in hinge pins to reduce play
- Oversize molded toe and camber links
- Heavy-duty C-hubs with oversize bearings
- Multiple mounting points for suspension tuning
- Chassis
- 3.2 mm ribbed aluminum chassis
- Formed edges for improved strength
- Thick aluminum T-Bar™ for added rigidity
- High-strength buttressing on shock towers
- Rugged locking battery compartment with quick-release door
- Low-CG design for improved handling
- Interlocking components for tight tolerances
- Tough front and rear bumpers double as skid plates
- Hidden wire management for clean appearance
- 3.2 mm ribbed aluminum chassis
- Clipless ProGraphix® Body
- One-handed clipless body mounting system
- Rigid internal frame
- Molded body reinforcements for tear-through protection
- Protective roof skids
- Rugged high-downforce rear wing
- Steering
- Waterproof 2275 metal gear servo
- 347 oz-in torque
- High-throw bellcrank steering design
- Heavy-duty servo saver with aluminum posts
- Metal servo horn
- Waterproof 2275 metal gear servo
- Wheels and Tires
- Huge 6.7″ Sledgehammer all-terrain tires
- Belted carcass resists ballooning
- Tough 3.8″ black wheels
- Splined 17 mm aluminum axle hubs
- Huge 6.7″ Sledgehammer all-terrain tires
MODEL SPECS
| Model Name: | Sledge Belted |
|---|---|
| Model Type: | Monster Truck |
| Model Speed: | 70+ mph with 6s LiPo battery and optional gearing |
| Model Skill Level: | 4 |
| Scale: | 1/8 |
| Weight: | 12.74 lbs (5.77 kg) |
| Length: | 23.78 inches (604 mm including wing) |
| Width: | 18.10 inches (459 mm) |
| Front Track: | 18.10 inches (459 mm) |
| Rear Track: | 18.10 inches (459 mm) |
| Height: | 8.43 inches (214 mm) |
| Wheelbase: | 15.10 inches (384 mm) |
|---|---|
| Center Ground Clearance: | 1.95 inches (50 mm) |
| Drivetrain: | Shaft-driven 4WD |
| Transmission: | Single speed |
| Differential Type: | Sealed, hardened steel bevel, limited slip |
| Gear Pitch: | 1.0 metric pitch |
| Servo(s): | 2275 digital metal-gear waterproof (347 oz-in) |
| Radio System: | TQi™ 2.4 GHz 2-channel transmitter with TSM® receiver |
| Battery Compartment Specs: | 181 mm X 54 mm X 45 mm |
MOTOR SPECS
| Motor Name: | 4-pole 2000 kV |
|---|---|
| Motor Type: | 2000 kV sensorless brushless |
| Motor Weight: | 14.32 oz (406 g) |
| Motor Length: | 2.97 inches (76 mm) |
| Motor Diameter: | 1.65 inches (42 mm) |
| Motor Shaft Size: | 5 mm |
| Motor Connector Type: | Traxxas 6.5 mm bullet connectors |
ESC SPECS
| ESC Name: | VXL-6s |
|---|---|
| ESC Type: | Brushless |
| ESC Case Size: | 2.28” (58 mm) x 2.83” (72 mm) x 1.81” (46 mm) |
| ESC Weight: | 7.30 oz (207 g) |
| Motor Connectors: | 6.5 mm bullet connectors |
| Battery Connectors: | Traxxas High-Current Connectors |
